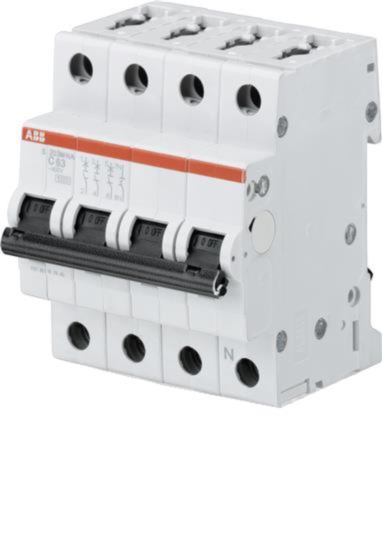

ABB S203MT-K1NA MCB - S200M - 4P - K - 1
MPN: 2CDS273446R0217
Alt. SKU: S203MT-K1NA
Special Price
£299.10
£249.25
Regular Price
£398.80
Why Choose the S203MT-K1NA [2CDS273446R0217]
S203MT-K1NA Miniature Circuit Breaker K-Char., 10kA, 1A, 3P, +NA
Technical Specification
- Type: Miniature Circuit Breaker (MCB), 3P+N.
- Current Rating: 1 A.
- Breaking Capacity: 15 kA at 230/400 V; Service breaking capacity 11.2 kA.
- Energy Limiting Class: 3.
- Dielectric Test Voltage: 2 kV at 50/60 Hz for 1 minute.
- Terminal Type: Screw terminals with failsafe bi-directional cylinder-lift design.
- Connecting Capacity: Flexible 0.75–25 mm², rigid up to 35 mm², busbar 10/10 mm².
- Mechanical Endurance: 20,000 operating cycles.
- Actuator: Toggle, black insulated with sealable marking.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the current rating of the S203MT-K1NA Miniature Circuit Breaker?
The current rating is 1 A.
What is the breaking capacity of this circuit breaker?
The breaking capacity is 15 kA at 230/400 V, with a service breaking capacity of 11.2 kA.
What types of terminals does the S203MT-K1NA have?
It features screw terminals with a failsafe bi-directional cylinder-lift design.
What is the connecting capacity for cables?
It can accommodate flexible cables from 0.75 to 25 mm², rigid cables up to 35 mm², and busbars of 10/10 mm².
What is the mechanical endurance of this circuit breaker?
The mechanical endurance is rated for 20,000 operating cycles.
What is the dielectric test voltage for the S203MT-K1NA?
The dielectric test voltage is 2 kV at 50/60 Hz for 1 minute.
What standards and approvals does this product conform to?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CDS273446R0217 |
|---|---|
| Amperage | 1A |
| Number of Poles | 4 Pole |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
| Manufacturer | ABB |
| Alternative Product SKU | S203MT-K1NA |
| Barcode | 4053546114546 |
