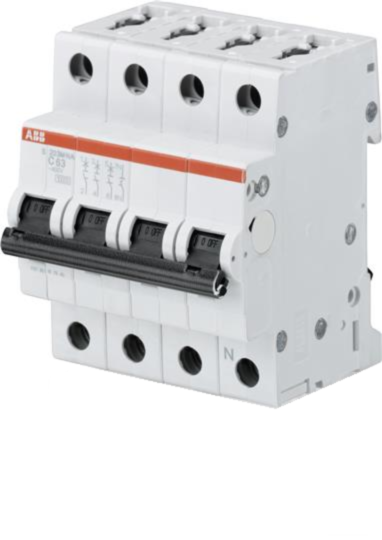

ABB S203M-Z3NA MCB - S200P - 4P - Z - 3A
MPN: 2CDS273103R0318
Alt. SKU: S203M-Z3NA
Special Price
£112.33
£93.61
Regular Price
£204.24
Why Choose the S203M-Z3NA [2CDS273103R0318]
System pro M compact S200M miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 10 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200M comply with IEC/EN 60898-1 and IEC/EN 609 47-2, allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200M to save 50% space.
Technical Specification
- Function: Thermal-magnetic miniature circuit breaker with overload and short circuit protection.
- Voltage Ratings: Up to 440 V AC; 125 V DC maximum operating voltage (UL/CSA).
- Current Rating: Rated currents up to 63 A.
- Contact Configuration: 3P+N with neutral terminals on the right.
- Breaking Capacity: Ultimate breaking capacity 25 kA (230 V AC), 15 kA (400/440 V AC); service breaking capacity 7.5 kA (230 V AC).
- Terminal Type and Capacity: Screw terminals; cable range flexible 0.75–25 mm², rigid up to 35 mm².
- Electrical Endurance: 20,000 switching cycles.
- Insulation: Dielectric test voltage 2 kV at 50/60 Hz for 1 min.
- Actuator: Toggle type with red (ON) / green (OFF) indication, sealable.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the maximum breaking capacity of the S200M circuit breakers?
The ultimate breaking capacity is 25 kA at 230 V AC and 15 kA at 400/440 V AC.
What are the available current ratings for the S200M series?
The S200M circuit breakers are available with rated currents up to 63 A.
Can auxiliary contacts be mounted on the S200M circuit breakers?
Yes, bottom-fitting auxiliary contacts can be mounted to save 50% space.
What is the cable capacity for the terminals of the S200M?
The screw terminals can accommodate flexible cables from 0.75 to 25 mm² and rigid cables up to 35 mm².
What tripping mechanisms are used in the S200M circuit breakers?
They feature a delayed thermal tripping mechanism for overload protection and an electromechanic tripping mechanism for short circuit protection.
What is the insulation dielectric test voltage for the S200M?
The dielectric test voltage is 2 kV at 50/60 Hz for 1 minute.
What standards do the S200M circuit breakers comply with?
All MCBs comply with IEC/EN 60898-1 and IEC/EN 60947-2. See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CDS273103R0318 |
|---|---|
| Amperage | 3A |
| Number of Poles | 4 Pole |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
| Manufacturer | ABB |
| Alternative Product SKU | S203M-Z3NA |
| Barcode | 4016779601511 |
