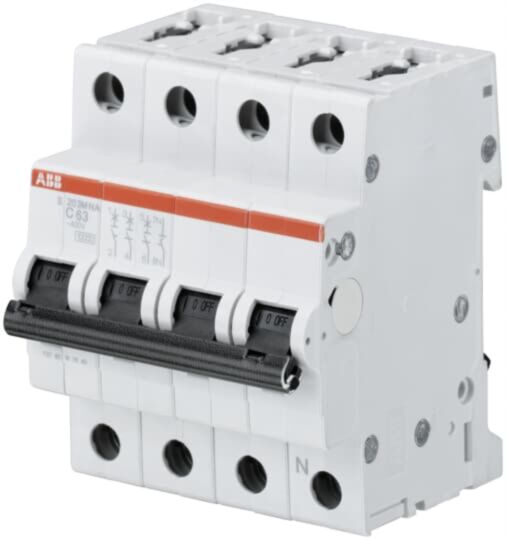

ABB S203M-K25NA MCB - S200P - 4P - K - 25A
MPN: 2CDS273103R0517
Alt. SKU: S203M-K25NA
Special Price
£128.06
£106.72
Regular Price
£232.85
Why Choose the S203M-K25NA [2CDS273103R0517]
System pro M compact S200M miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 10 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200M comply with IEC/EN 60898-1 and IEC/EN 609 47-2, allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200M to save 50% space.
Technical Specification
- Function: Current limiting circuit breaker with thermal and electromechanical tripping for overload and short circuit protection.
- Rated Current: Up to 25A.
- Rated Voltage: 230/400 V AC.
- Breaking Capacity: 25 kA at 230 V AC, 15 kA at 400/440 V AC.
- Contact Configuration: 3 poles plus neutral (3P+N).
- Terminal Type: Failsafe bi-directional screw terminals.
- Connecting Capacity: Flexible 0.75–25 mm², rigid 0.75–35 mm², busbar 10/10 mm².
- Insulation and Dielectric Rating: Rated dielectric test voltage 2 kV (50/60 Hz, 1 min).
- Mechanical Endurance: 20,000 operating cycles.
- Actuator: Toggle, black, sealable, with red ON/green OFF indication.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the function of the S200M miniature circuit breakers?
The S200M miniature circuit breakers are current limiting devices that provide overload and short circuit protection through thermal and electromechanical tripping mechanisms.
What are the available configurations for the S200M circuit breakers?
The S200M circuit breakers are available in configurations including 1P, 1P+N, 2P, 3P, 3P+N, and 4P.
What is the maximum breaking capacity of the S200M circuit breakers?
The maximum breaking capacity is up to 10 kA at 230/400 V AC.
What is the rated current range for the S200M circuit breakers?
The rated current for the S200M circuit breakers is up to 63A.
What is the cable capacity for connecting to the S200M circuit breakers?
The connecting capacity is flexible 0.75–25 mm², rigid 0.75–35 mm², and busbar 10/10 mm².
Can auxiliary contacts be mounted on the S200M circuit breakers?
Yes, bottom-fitting auxiliary contacts can be mounted on the S200M to save 50% space.
What standards do the S200M circuit breakers comply with?
All MCBs of the S200M range comply with IEC/EN 60898-1 and IEC/EN 60947-2. See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CDS273103R0517 |
|---|---|
| Amperage | 25A |
| Number of Poles | 4 Pole |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
| Manufacturer | ABB |
| Alternative Product SKU | S203M-K25NA |
| Barcode | 4016779659567 |
