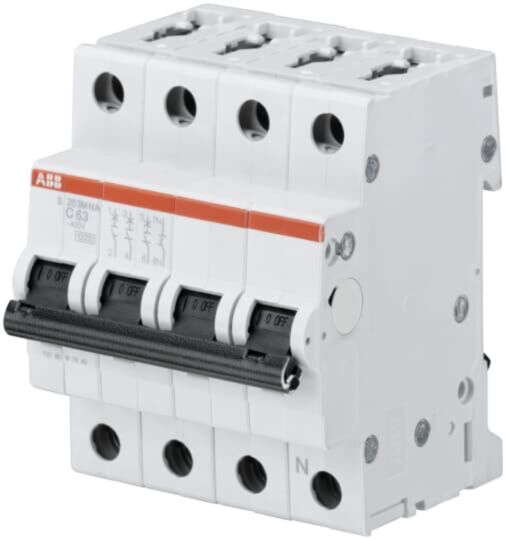

ABB S203M-C4NA MCB - S200P - 4P - C - 4A
MPN: 2CDS273103R0044
Alt. SKU: S203M-C4NA
Special Price
£129.73
£108.11
Regular Price
£235.87
Why Choose the S203M-C4NA [2CDS273103R0044]
System pro M compact S200M miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 10 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200M comply with IEC/EN 60898-1 and IEC/EN 609 47-2, allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200M to save 50% space.
Technical Specification
- Function: Miniature circuit breaker with thermal and electromechanic tripping for overload and short circuit protection.
- Voltage Rating: Up to 400 V AC, 480Y/277 V AC, and 125 V DC.
- Current Rating: Rated current up to 63 A; specific model rated at 4 A.
- Contact Configuration: 3 poles + neutral (3P+N) with right-position neutral terminals.
- Breaking Capacity: Ultimate breaking capacity 25 kA (230 V AC), 15 kA (400 V AC); service breaking capacity 7.5 kA (230 V AC).
- Terminal Type and Capacity: Screw terminals; supports flexible 0.75–25 mm², rigid/strafanded 0.75–35 mm², busbar 10/10 mm².
- Durability: Electrical and mechanical endurance of 20,000 cycles.
- Insulation and Dielectric Strength: Dielectric test voltage 2 kV at 50/60 Hz for 1 minute; insulation group II actuator.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the function of the S200M miniature circuit breaker?
The S200M is a miniature circuit breaker designed for overload and short circuit protection, utilising both thermal and electromechanic tripping mechanisms.
What are the available current ratings for the S200M?
The S200M has a rated current capacity of up to 63 A, with specific models available at 4 A.
What is the maximum breaking capacity of the S200M?
The ultimate breaking capacity is 25 kA at 230 V AC and 15 kA at 400 V AC, with a service breaking capacity of 7.5 kA at 230 V AC.
What terminal types and capacities does the S200M support?
The S200M features screw terminals that support flexible conductors from 0.75–25 mm², rigid/stranded conductors up to 35 mm², and busbars of 10/10 mm².
Can auxiliary contacts be mounted on the S200M?
Yes, a bottom-fitting auxiliary contact can be mounted on the S200M, allowing for a space-saving installation.
What standards does the S200M comply with?
All MCBs in the S200M range comply with IEC/EN 60898-1 and IEC/EN 60947-2. See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CDS273103R0044 |
|---|---|
| Amperage | 4A |
| Number of Poles | 4 Pole |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
| Manufacturer | ABB |
| Alternative Product SKU | S203M-C4NA |
| Barcode | 4016779550550 |
