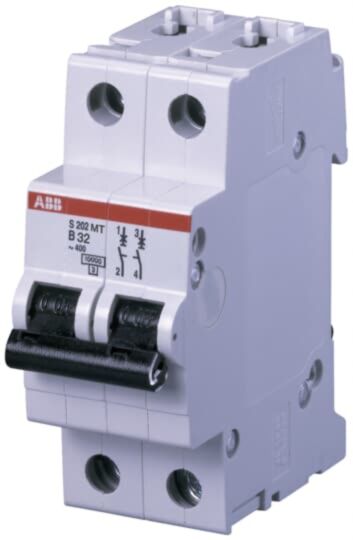

ABB S202MT-K4 MCB - S200M - 2P - K - 4
MPN: 2CDS272445R0337
Alt. SKU: S202MT-K4
Special Price
£117.12
£97.60
Regular Price
£156.16
Why Choose the S202MT-K4 [2CDS272445R0337]
S202MT-K4 Miniature Circuit Breaker K-Char., 10kA, 4A, 2P
Technical Specification
- Product Name: S202MT-K4 Miniature Circuit Breaker, K-Characteristic.
- Rated Current: 4 A.
- Number of Poles: 2P (Two Poles).
- Rated Ultimate Short-Circuit Breaking Capacity (Icu): 15 kA at 230/400 V.
- Rated Service Short-Circuit Breaking Capacity (Ics): 11.2 kA.
- Dielectric Test Voltage: 2 kV at 50/60 Hz for 1 minute.
- Terminal Type and Capacity: Screw terminals; supports busbar 10/10 mm², flexible with ferrule 0.75–16 mm², flexible 0.75–25 mm², rigid 0.75–35 mm², stranded 0.75–35 mm².
- Mechanical Endurance: 20,000 cycles.
- Installation Width: 3 DIN modules (DIN 43880).
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated current of the S202MT-K4 Miniature Circuit Breaker?
The rated current is 4 A.
How many poles does the S202MT-K4 have?
The S202MT-K4 has 2 poles (2P).
What is the rated ultimate short-circuit breaking capacity?
The rated ultimate short-circuit breaking capacity (Icu) is 15 kA at 230/400 V.
What is the dielectric test voltage for this circuit breaker?
The dielectric test voltage is 2 kV at 50/60 Hz for 1 minute.
What types of terminals does the S202MT-K4 support?
It has screw terminals and supports busbar 10/10 mm², flexible with ferrule 0.75–16 mm², flexible 0.75–25 mm², rigid 0.75–35 mm², and stranded 0.75–35 mm².
What is the mechanical endurance of the S202MT-K4?
The mechanical endurance is 20,000 cycles.
How wide is the S202MT-K4 for installation?
The installation width is 3 DIN modules (DIN 43880).
| Manufacturer Part Number | 2CDS272445R0337 |
|---|---|
| Amperage | 4A |
| Number of Poles | 2 Pole |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
| Manufacturer | ABB |
| Alternative Product SKU | S202MT-K4 |
| Barcode | 4016779126380 |
