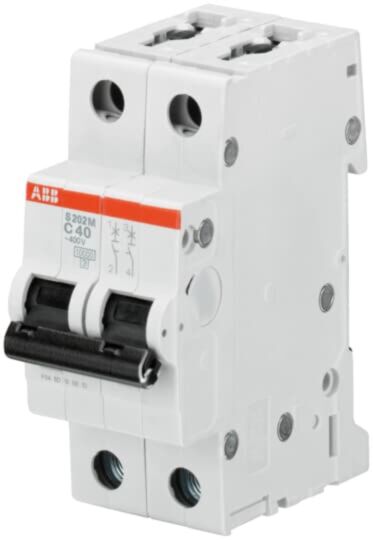

ABB S202M-B25 MCB - S200M - 2P - B - 25A
MPN: 2CDS272001R0255
Alt. SKU: S202M-B25
Special Price
£42.05
£35.04
Regular Price
£76.44
Why Choose the S202M-B25 [2CDS272001R0255]
System pro M compact S200M miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 10 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200M comply with IEC/EN 60898-1 and IEC/EN 609 47-2, allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200M to save 50% space.
Technical Specification
- Function: Thermal and electromechanical tripping for overload and short circuit protection.
- Voltage Rating: Up to 440 V AC, with breaking capacities of 25 kA (230 V AC) and 15 kA (400/440 V AC).
- Current Rating: Up to 63 A, specifically 25 A for model S202M-B25.
- Contact Configuration: 2 poles (2P) with red ON/green OFF position indication.
- Terminal Type and Capacity: Screw terminals, suitable for busbar 10/10 mm², flexible conductors 0.75–25 mm², and rigid conductors up to 35 mm².
- Mechanical and Electrical Endurance: 20,000 mechanical cycles and up to 20,000 AC operational cycles.
- Insulation and Dielectric Strength: Rated dielectric test voltage 2 kV at 50/60 Hz for 1 minute.
- Mounting Size: DIN 43880 standard width of 1 module.
- Actuator: Toggle type, black insulation with sealable feature.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What are the tripping mechanisms used in the S200M miniature circuit breakers?
The S200M miniature circuit breakers utilise a delayed thermal tripping mechanism for overload protection and an electromechanical tripping mechanism for short circuit protection.
What is the maximum breaking capacity of the S200M circuit breakers?
The S200M circuit breakers have a breaking capacity of up to 10 kA at 230/400 V AC.
What are the available current ratings for the S200M series?
The S200M series offers current ratings up to 63 A, with the specific model S202M-B25 rated at 25 A.
What types of conductors are compatible with the S200M circuit breakers?
The S200M circuit breakers are suitable for flexible conductors from 0.75–25 mm² and rigid conductors up to 35 mm², with screw terminals for busbar 10/10 mm².
What is the mounting size of the S200M circuit breakers?
The S200M circuit breakers conform to the DIN 43880 standard width of 1 module.
Are the S200M circuit breakers compliant with any standards?
All MCBs of the S200M product range comply with IEC/EN 60898-1 and IEC/EN 60947-2. See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CDS272001R0255 |
|---|---|
| Amperage | 25A |
| Number of Poles | 2 Pole |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
| Manufacturer | ABB |
| Alternative Product SKU | S202M-B25 |
| Barcode | 4016779549639 |
