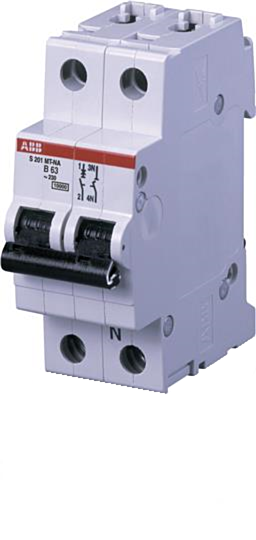

ABB S201MT-Z1NA MCB - S200M - 2P - Z - 1NA
MPN: 2CDS271446R0218
Alt. SKU: S201MT-Z1NA
Special Price
£152.24
£126.87
Regular Price
£202.99
Why Choose the S201MT-Z1NA [2CDS271446R0218]
S201MT-Z1NA Miniature Circuit Breaker Z-Char., 10kA, 1A, 1P, +NA
Technical Specification
- Type: Miniature Circuit Breaker, Z-Characteristic.
- Rated Current: 1 A.
- Poles: 1P + Neutral (1P+N).
- Rated Ultimate Short-Circuit Breaking Capacity: 15 kA at 230/400 V.
- Rated Service Short-Circuit Breaking Capacity: 11.2 kA.
- Dielectric Test Voltage: 2 kV (50/60 Hz, 1 min).
- Terminal Type: Screw Terminals, failsafe bi-directional cylinder-lift.
- Connecting Capacity: Flexible 0.75–25 mm², Rigid 0.75–35 mm², Busbar 10/10 mm².
- Mechanical Endurance: 20,000 cycles.
- Tightening Torque: 2.8 N·m.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated current of the S201MT-Z1NA Miniature Circuit Breaker?
The rated current is 1 A.
What is the short-circuit breaking capacity of this circuit breaker?
The rated ultimate short-circuit breaking capacity is 15 kA at 230/400 V, and the rated service short-circuit breaking capacity is 11.2 kA.
What types of terminals does the S201MT-Z1NA use?
It uses screw terminals with a failsafe bi-directional cylinder-lift design.
What is the connecting capacity for cables?
The connecting capacity is flexible 0.75–25 mm², rigid 0.75–35 mm², and busbar 10/10 mm².
What is the mechanical endurance of this circuit breaker?
The mechanical endurance is rated at 20,000 cycles.
What is the tightening torque for the terminals?
The tightening torque is 2.8 N·m.
What standards and approvals does this product conform to?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CDS271446R0218 |
|---|---|
| Amperage | 1A |
| Number of Poles | 2 Pole |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
| Manufacturer | ABB |
| Alternative Product SKU | S201MT-Z1NA |
| Barcode | 4016779127479 |
