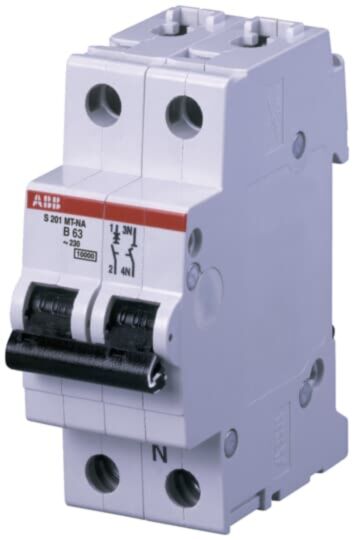

ABB S201MT-C63NA MCB - S200M - 2P - C - 63A
MPN: 2CDS271446R0634
Alt. SKU: S201MT-C63NA
Special Price
£94.34
£78.62
Regular Price
£125.78
Why Choose the S201MT-C63NA [2CDS271446R0634]
S201MT-C63NA Miniature Circuit Breaker C-Char., 10kA, 63A, 1P, +NA
Technical Specification
- Function: Miniature Circuit Breaker, C-Characteristic.
- Voltage Rating: 230 V / 400 V.
- Current Rating: 63 A.
- Contact Configuration: 1 pole + Neutral (1P+N).
- Breaking Capacity: 15 kA ultimate short-circuit (Icu), 7.5 kA service short-circuit (Ics).
- Insulation Test Voltage: 2 kV (50/60 Hz, 1 min).
- Terminal Type: Screw terminals, failsafe bi-directional cylinder-lift.
- Connecting Capacity: Flexible 0.75–25 mm², rigid and stranded 0.75–35 mm², busbar 10/10 mm².
- Mechanical Endurance: 20,000 cycles.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the function of the S201MT-C63NA Miniature Circuit Breaker?
The S201MT-C63NA functions as a Miniature Circuit Breaker with a C-Characteristic, designed to protect electrical circuits from overloads and short circuits.
What is the current and voltage rating of this circuit breaker?
The circuit breaker has a current rating of 63 A and a voltage rating of 230 V / 400 V.
What is the breaking capacity of the S201MT-C63NA?
The breaking capacity is 15 kA for ultimate short-circuit (Icu) and 7.5 kA for service short-circuit (Ics).
What types of cables can be connected to this circuit breaker?
The connecting capacity is flexible cables of 0.75–25 mm², rigid and stranded cables of 0.75–35 mm², and busbar of 10/10 mm².
How is the circuit breaker mounted?
The S201MT-C63NA features screw terminals with a failsafe bi-directional cylinder-lift for secure mounting.
What is the mechanical endurance of this circuit breaker?
The mechanical endurance is rated for 20,000 cycles.
What standards and approvals does the S201MT-C63NA comply with?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CDS271446R0634 |
|---|---|
| Amperage | 63A |
| Number of Poles | 2 Pole |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
| Manufacturer | ABB |
| Alternative Product SKU | S201MT-C63NA |
| Barcode | 4016779123655 |
