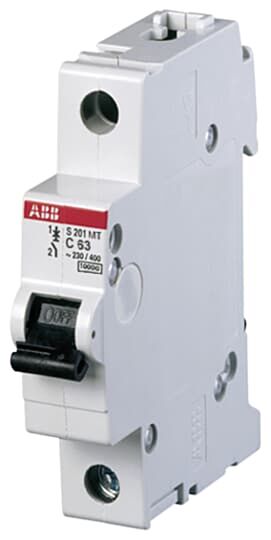

ABB S201MT-C6 MCB - S200M - 1P - C - 6A
MPN: 2CDS271445R0064
Alt. SKU: S201MT-C6
Special Price
£37.72
£31.43
Regular Price
£50.28
Why Choose the S201MT-C6 [2CDS271445R0064]
S201MT-C6 Miniature Circuit Breaker C-Char., 10kA, 6A, 1P
Technical Specification
- Function: Miniature Circuit Breaker, C-Characteristic.
- Rated Current: 6 A.
- Poles: Single Pole (1P).
- Rated Ultimate Short-Circuit Breaking Capacity (Icu): 15 kA at 230 V / 400 V.
- Rated Service Short-Circuit Breaking Capacity (Ics): 11.2 kA.
- Dielectric Test Voltage: 2 kV, 50/60 Hz, 1 minute.
- Terminal Type: Screw Terminals, failsafe bi-directional cylinder-lift.
- Connecting Capacity: Flexible 0.75–25 mm², rigid 0.75–35 mm².
- Mechanical Endurance: 20,000 cycles.
- Installation Width: 3 DIN modular units.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the function of the S201MT-C6 Miniature Circuit Breaker?
The S201MT-C6 is a Miniature Circuit Breaker with a C-Characteristic, designed to protect electrical circuits from overloads and short circuits.
What is the rated current of the S201MT-C6?
The rated current of the S201MT-C6 is 6 A.
How many poles does the S201MT-C6 have?
The S201MT-C6 has a single pole (1P).
What is the breaking capacity of the S201MT-C6?
The rated ultimate short-circuit breaking capacity (Icu) is 15 kA at 230 V / 400 V, and the rated service short-circuit breaking capacity (Ics) is 11.2 kA.
What is the connecting capacity for cables?
The connecting capacity is flexible 0.75–25 mm² and rigid 0.75–35 mm².
What is the installation width of the S201MT-C6?
The installation width is 3 DIN modular units.
What is the mechanical endurance of the S201MT-C6?
The mechanical endurance is rated for 20,000 cycles.
| Manufacturer Part Number | 2CDS271445R0064 |
|---|---|
| Amperage | 6A |
| Number of Poles | 1 Pole |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
| Manufacturer | ABB |
| Alternative Product SKU | S201MT-C6 |
| Barcode | 4016779123297 |
