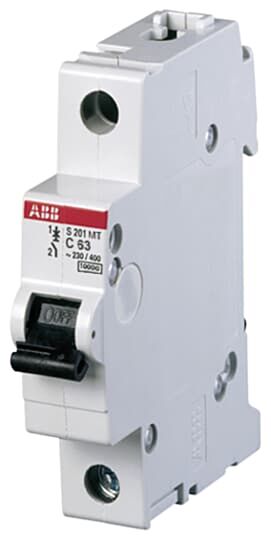

ABB S201MT-C0.5 MCB - S200M - 1P - C - 0.5A
MPN: 2CDS271445R0984
Alt. SKU: S201MT-C0,5
Special Price
£49.22
£41.02
Regular Price
£65.63
Why Choose the S201MT-C0,5 [2CDS271445R0984]
S201MT-C0,5 Miniature Circuit Breaker C-Char., 10kA, 0,5A, 1P
Technical Specification
- Function: Miniature Circuit Breaker, C-Characteristic.
- Rated Current: 0.5 A.
- Poles: Single Pole (1P).
- Rated Ultimate Short-Circuit Breaking Capacity: 15 kA at 230/400 V.
- Rated Service Short-Circuit Breaking Capacity: 11.2 kA.
- Dielectric Test Voltage: 2 kV at 50/60 Hz for 1 minute.
- Terminal Type: Failsafe Bi-directional Cylinder-lift Screw Terminals.
- Connecting Capacity: Flexible 0.75–25 mm², Rigid up to 35 mm², Busbar 10/10 mm².
- Mechanical Endurance: 20,000 operating cycles.
- Tightening Torque: 2.8 N·m.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated current of the S201MT-C0,5 Miniature Circuit Breaker?
The rated current is 0.5 A.
What is the breaking capacity of this circuit breaker?
The rated ultimate short-circuit breaking capacity is 15 kA at 230/400 V, and the rated service short-circuit breaking capacity is 11.2 kA.
What type of terminals does the S201MT-C0,5 use?
It features failsafe bi-directional cylinder-lift screw terminals.
What is the connecting capacity for cables?
The connecting capacity is flexible 0.75–25 mm², rigid up to 35 mm², and busbar 10/10 mm².
How many operating cycles can this circuit breaker endure?
The mechanical endurance is rated for 20,000 operating cycles.
What is the tightening torque for this circuit breaker?
The tightening torque is 2.8 N·m.
What standards and approvals does the S201MT-C0,5 conform to?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CDS271445R0984 |
|---|---|
| Amperage | 0.5A |
| Number of Poles | 1 Pole |
| Trip Curve Type | Type B 10KA |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
| Manufacturer | ABB |
| Alternative Product SKU | S201MT-C0,5 |
| Barcode | 4016779123228 |
