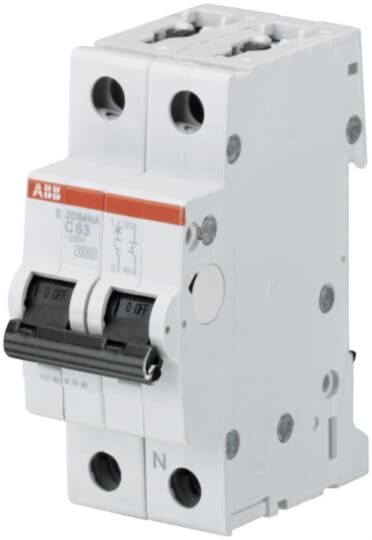

ABB S201M-Z6NA MCB - S200M - 2P - Z - 6A
MPN: 2CDS271103R0378
Alt. SKU: S201M-Z6NA
Special Price
£46.69
£38.91
Regular Price
£84.90
Why Choose the S201M-Z6NA [2CDS271103R0378]
System pro M compact S200M miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 10 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200M comply with IEC/EN 60898-1 and IEC/EN 609 47-2, allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200M to save 50% space.
Technical Specification
- Function: Current limiting miniature circuit breaker with thermal and electromechanic tripping for overload and short circuit protection.
- Rated Current: Up to 63 A.
- Voltage Ratings: 230/400 V AC, maximum operating voltage UL/CSA 60 V DC, 480Y/277 V AC.
- Contact Configuration: 1P+N with right-positioned neutral terminal.
- Breaking Capacity: Ultimate short-circuit breaking capacity up to 25 kA (133 V AC); service breaking capacity up to 18.8 kA (133 V AC).
- Terminal Type and Capacity: Screw terminals supporting busbar 10/10 mm², flexible 0.75–25 mm², and rigid 0.75–35 mm² conductors.
- Insulation and Dielectric Strength: Rated dielectric test voltage 2 kV at 50/60 Hz for 1 minute.
- Mechanical Durability: 20,000 operation cycles.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What types of tripping mechanisms are used in the S200M miniature circuit breakers?
The S200M miniature circuit breakers utilise a delayed thermal tripping mechanism for overload protection and an electromechanic tripping mechanism for short circuit protection.
What is the maximum breaking capacity of the S200M circuit breakers?
The ultimate short-circuit breaking capacity is up to 25 kA at 133 V AC, with a service breaking capacity of up to 18.8 kA at the same voltage.
What are the rated current options available for the S200M?
The S200M circuit breakers are available with rated currents up to 63 A.
What types of conductor terminals do the S200M circuit breakers support?
The S200M features screw terminals supporting busbar 10/10 mm², flexible conductors from 0.75–25 mm², and rigid conductors from 0.75–35 mm².
Can auxiliary contacts be mounted on the S200M circuit breakers?
Yes, bottom-fitting auxiliary contacts can be mounted on the S200M to save 50% space.
What are the voltage ratings for the S200M circuit breakers?
The voltage ratings are 230/400 V AC, with a maximum operating voltage of 60 V DC and 480Y/277 V AC.
Are the S200M circuit breakers compliant with any standards?
Yes, all MCBs of the S200M range comply with IEC/EN 60898-1 and IEC/EN 60947-2. See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CDS271103R0378 |
|---|---|
| Amperage | 6A |
| Number of Poles | 2 Pole |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
| Manufacturer | ABB |
| Alternative Product SKU | S201M-Z6NA |
| Barcode | 4016779600125 |
