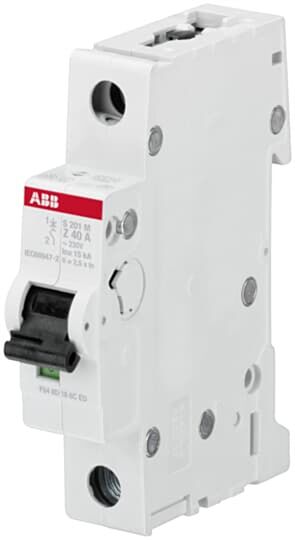

ABB S201M-Z6 MCB - S200M - 1P - Z - 6A
MPN: 2CDS271001R0378
Alt. SKU: S201M-Z6
Special Price
£27.47
£22.89
Regular Price
£49.93
Why Choose the S201M-Z6 [2CDS271001R0378]
System pro M compact S200M miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 10 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200M comply with IEC/EN 60898-1 and IEC/EN 609 47-2, allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200M to save 50% space.
Technical Specification
- Function: Current limiting miniature circuit breaker with thermal and electromechanical tripping for overload and short circuit protection.
- Rated Current: Up to 63 A.
- Voltage Rating: 230 / 400 V AC, max operating voltage 480Y / 277 V AC and 60 V DC.
- Contact Configuration: Single pole (1P).
- Breaking Capacity: Ultimate breaking capacity up to 25 kA (133 V AC), 15 kA (230 V AC and 400 V AC).
- Terminal Type: Failsafe bi-directional cylinder-lift screw terminals; connecting capacity flexible 0.75–25 mm², rigid 0.75–35 mm².
- Mechanical Endurance: 20,000 operating cycles.
- Contact Position Indication: Red ON / Green OFF.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What types of tripping mechanisms do the S200M miniature circuit breakers use?
The S200M miniature circuit breakers utilise a delayed thermal tripping mechanism for overload protection and an electromechanical tripping mechanism for short circuit protection.
What is the maximum rated current for the S200M circuit breakers?
The S200M circuit breakers have a maximum rated current of up to 63 A.
What are the available configurations for the S200M circuit breakers?
The S200M circuit breakers are available in configurations of 1P, 1P+N, 2P, 3P, 3P+N, and 4P.
What is the breaking capacity of the S200M circuit breakers?
The ultimate breaking capacity is up to 25 kA at 133 V AC and 15 kA at 230 V AC and 400 V AC.
What is the terminal type and connecting capacity for the S200M circuit breakers?
The S200M circuit breakers feature failsafe bi-directional cylinder-lift screw terminals with a connecting capacity of 0.75–25 mm² for flexible cables and 0.75–35 mm² for rigid cables.
Can auxiliary contacts be mounted on the S200M circuit breakers?
Yes, bottom-fitting auxiliary contacts can be mounted on the S200M to save 50% space.
What standards do the S200M circuit breakers comply with?
All MCBs of the S200M range comply with IEC/EN 60898-1 and IEC/EN 60947-2. See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CDS271001R0378 |
|---|---|
| Amperage | 6A |
| Number of Poles | 1 Pole |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
| Manufacturer | ABB |
| Alternative Product SKU | S201M-Z6 |
| Barcode | 4016779599603 |
