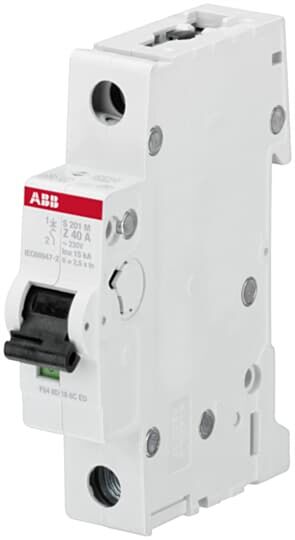

ABB S201M-K0.5 MCB - S200M - 1P - K - 0.5A
MPN: 2CDS271001R0157
Alt. SKU: S201M-K0.5
Special Price
£24.56
£20.47
Regular Price
£44.65
Why Choose the S201M-K0.5 [2CDS271001R0157]
System pro M compact S200M miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 10 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200M comply with IEC/EN 60898-1 and IEC/EN 609 47-2, allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200M to save 50% space.
Technical Specification
- Function: Miniature circuit breaker with thermal and electromechanical tripping for overload and short circuit protection.
- Rated Current: Up to 63 A.
- Voltage Ratings: 230/400 V AC, with UL/CSA ratings up to 480Y/277 V AC and 60 V DC.
- Breaking Capacity: Up to 15 kA at 230/400 V AC; UL interrupting rating up to 10 kA at 60 V DC.
- Contact Configuration: Single pole (1P) with red ON/green OFF indication.
- Terminal Type and Capacity: Screw terminals; supports flexible cables 0.75–25 mm² and rigid cables up to 35 mm².
- Impulse Withstand Voltage: Energy limiting class 3.
- Mechanical Endurance: 20,000 operating cycles.
- Insulation: Actuator made of Insulation Group II material, black and sealable.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the maximum rated current for the S200M miniature circuit breakers?
The maximum rated current for the S200M miniature circuit breakers is up to 63 A.
What are the available breaking capacities for the S200M?
The S200M has breaking capacities of up to 15 kA at 230/400 V AC and up to 10 kA at 60 V DC.
Can I use flexible cables with the S200M circuit breakers?
Yes, the S200M supports flexible cables from 0.75 to 25 mm² and rigid cables up to 35 mm².
What tripping mechanisms are used in the S200M?
The S200M uses a delayed thermal tripping mechanism for overload protection and an electromechanical tripping mechanism for short circuit protection.
Is the S200M suitable for industrial applications?
Yes, the S200M complies with IEC/EN 60898-1 and IEC/EN 609 47-2, making it suitable for residential, commercial, and industrial applications.
What configurations are available for the S200M circuit breakers?
The S200M is available in various configurations including 1P, 1P+N, 2P, 3P, 3P+N, and 4P.
What is the mechanical endurance of the S200M?
The mechanical endurance of the S200M is rated at 20,000 operating cycles.
| Manufacturer Part Number | 2CDS271001R0157 |
|---|---|
| Amperage | 0.5A |
| Number of Poles | 1 Pole |
| HS Code | 85362010 |
| Country of Manufacture | Germany |
| Manufacturer | ABB |
| Alternative Product SKU | S201M-K0.5 |
| Barcode | 4016779599436 |
