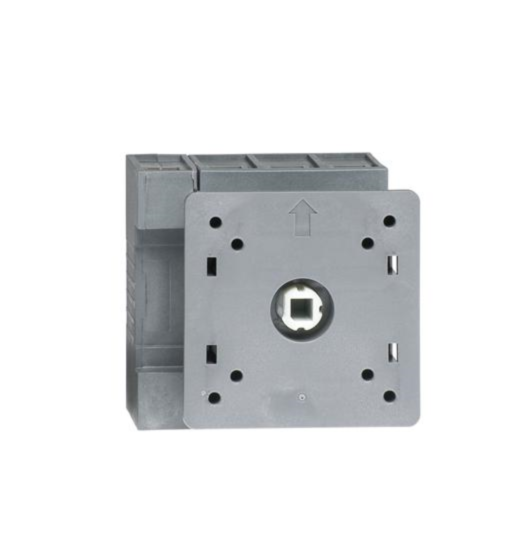

ABB ot80ft4n2 80 amp door mounted isolator 4 pole
MPN: 1SCA105499R1001
Alt. SKU: OT80FT4N2
Special Price
£61.13
£50.94
Regular Price
£94.04
Why Choose the OT80FT4N2 [1SCA105499R1001]
4-pole, front-operated, door-mounted switch-disconnector designed for non-fusible isolation. Features protected clamp terminals for secure wiring connections. Please note, the handle is supplied separately.
Technical Specification
- Function: 4-pole, front operated, door mounted non-fusible disconnect switch, handle not included.
- Rated Operational Current (AC-23A): 75 A at 380-415 V, 58 A at 500 V, 20 A at 690 V.
- Rated Operational Voltage: Up to 750 V main circuit.
- Rated Insulation Voltage (Ui): 750 V (IEC/EN 60664-1).
- Rated Impulse Withstand Voltage (Uimp): 8 kV.
- Degree of Protection: IP20 front.
- Terminal Type and Cable Range: Screw terminals; Cu 1.5 to 35 mm² (flexible, solid, stranded).
- Mechanical Durability: 20,000 operating cycles.
- Thermal Current (Ith): 80 A at 40 °C free-air.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the function of this switch-disconnector?
This is a 4-pole, front operated, door mounted non-fusible disconnect switch.
What is the rated operational current for this switch?
The rated operational current is 75 A at 380-415 V, 58 A at 500 V, and 20 A at 690 V.
What is the maximum rated operational voltage?
The maximum rated operational voltage is up to 750 V for the main circuit.
What is the cable capacity for the terminals?
The screw terminals accommodate cable sizes from 1.5 to 35 mm² for flexible, solid, and stranded conductors.
What is the degree of protection for this switch?
The degree of protection is IP20 for the front of the switch.
How many operating cycles can this switch endure?
The mechanical durability is rated for 20,000 operating cycles.
What standards and approvals does this product conform to?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 1SCA105499R1001 |
|---|---|
| HS Code | 85365080 |
| Amperage | 80A |
| Number of Poles | 4 Pole |
| Country of Manufacture | Finland |
| Manufacturer | ABB |
| Mount Type | Door mounted |
| Alternative Product SKU | OT80FT4N2 |
| Barcode | 6417019394589 |
