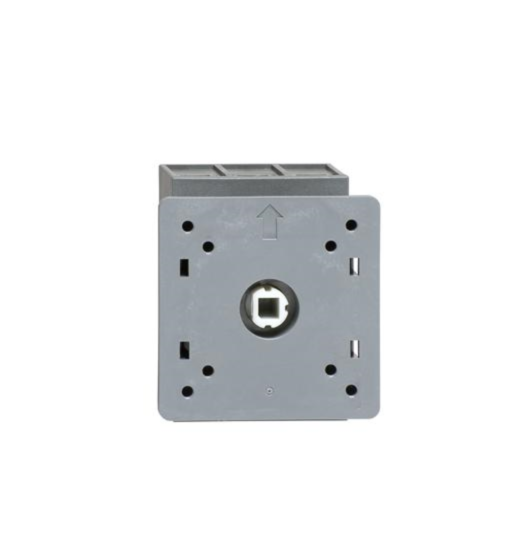

ABB ot80ft3 80 amp door mounted isolator 3 pole
MPN: 1SCA105431R1001
Alt. SKU: OT80FT3
Special Price
£50.70
£42.25
Regular Price
£78.00
Why Choose the OT80FT3 [1SCA105431R1001]
3-pole, front-operated, door-mounted switch-disconnector designed for non-fusible isolation. Features protected clamp terminals for secure wiring connections. Please note, the operating handle is supplied separately.
Technical Specification
- Function: 3-pole, front operated, door mounted non-fusible disconnect switch with protected clamp terminals (handle not included).
- Rated Operational Current: 80 A (AC-21A/22A at 380-690 V).
- Rated Operational Voltage: 750 V main circuit.
- Rated Insulation Voltage (Ui): 750 V according to IEC/EN 60664-1.
- Rated Impulse Withstand Voltage (Uimp): 8 kV.
- Degree of Protection: Front IP20.
- Terminal Type and Cable Range: Screw terminals; conductor size Cu 1.5 to 35 mm² (flexible, solid, stranded).
- Mechanical Durability: 20,000 operations.
- Mounting Type: Door mounting, front operated.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the function of this switch-disconnector?
This is a 3-pole, front operated, door mounted non-fusible disconnect switch designed for isolating electrical circuits.
What is the rated operational current of the switch?
The switch has a rated operational current of 80 A at AC-21A/22A for voltages between 380-690 V.
What is the cable capacity for the terminals?
The screw terminals accommodate conductor sizes from 1.5 to 35 mm² for flexible, solid, or stranded cables.
What is the degree of protection for this product?
The switch has a degree of protection rated at IP20 for the front.
How is the switch mounted?
This switch is designed for door mounting and is operated from the front.
What is the mechanical durability of the switch?
The switch is rated for 20,000 mechanical operations.
What standards does this product conform to?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 1SCA105431R1001 |
|---|---|
| HS Code | 85365080 |
| Amperage | 80A |
| Number of Poles | 3 Pole |
| Country of Manufacture | Finland |
| Manufacturer | ABB |
| Mount Type | Door mounted |
| Alternative Product SKU | OT80FT3 |
| Barcode | 6417019393667 |
