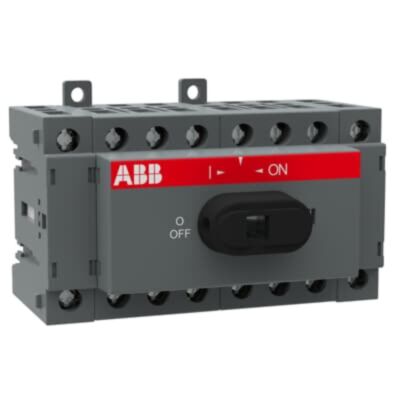

ABB ot40f8 40 amp load break switch 8 pole
MPN: 1SCA104938R1001
Alt. SKU: OT40F8
Special Price
£84.94
£70.78
Regular Price
£130.67
Why Choose the OT40F8 [1SCA104938R1001]
This 8-pole switch-disconnector is designed for front operation and base mounting on a DIN rail. It features protected clamp terminals for secure wiring connections. Please note that the handle and shaft are supplied separately. This non-fusible switch-disconnector is ideal for isolating circuits in industrial and commercial electrical installations.
Technical Specification
- Function: 8-pole front operated switch-disconnector, base and DIN-rail mountable, non-fusible with protected clamp terminals.
- Rated Operational Voltage: 750 V AC.
- Rated Operational Current: 40 A (AC-21A, AC-22A).
- Insulation Voltage (Ui): 750 V (IEC/EN 60664-1).
- Impulse Withstand Voltage (Uimp): 8 kV.
- Degree of Protection: Front IP20.
- Terminal Type and Size Range: Screw terminals; suitable for 0.75 to 10 mm² copper conductors (flexible, stranded, solid).
- Mechanical Durability: 20,000 operations.
- Conventional Thermal Current (Ithe): 40 A fully enclosed.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the function of this switch-disconnector?
This is an 8-pole front operated switch-disconnector designed for non-fusible applications.
What is the rated operational voltage and current?
The rated operational voltage is 750 V AC and the rated operational current is 40 A (AC-21A, AC-22A).
What type of terminals does this switch use?
The switch features screw terminals suitable for 0.75 to 10 mm² copper conductors, including flexible, stranded, and solid types.
Can this switch be mounted on a DIN rail?
Yes, it is designed to be base mounted and is also DIN-rail mountable.
What is the degree of protection for this switch?
The degree of protection is IP20 for the front of the switch.
What is the mechanical durability of this product?
The switch has a mechanical durability of 20,000 operations.
What standards and approvals does this product conform to?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 1SCA104938R1001 |
|---|---|
| HS Code | 85365080 |
| Amperage | 40A |
| Number of Poles | 8 Pole |
| Country of Manufacture | Finland |
| Manufacturer | ABB |
| Mount Type | Base mounted |
| Alternative Product SKU | OT40F8 |
| Barcode | 6417019390789 |
