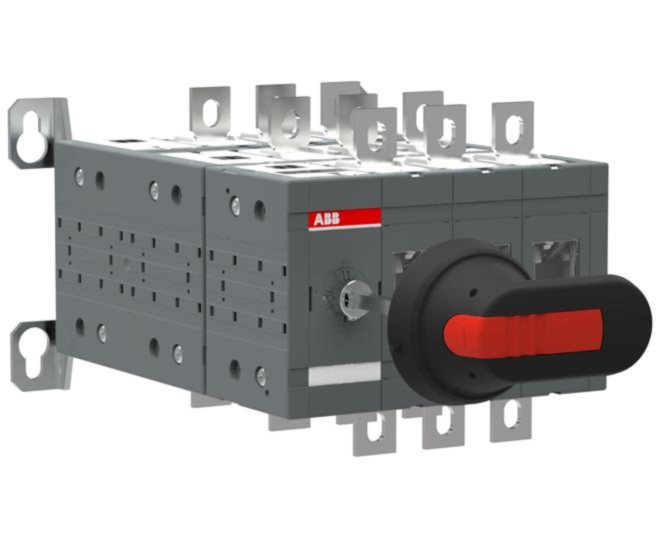

ABB ot160e03yp 160 amp 3 pole by-pass switch

Why Choose the ABB OT160E03YP By-Pass Switch?

The ABB OT160E03YP is a durable and reliable 160 A manual by-pass switch designed for industrial power distribution, control panel and supply switching applications. As part of ABB’s proven OT switch range, it provides dependable manual operation for systems where secure transfer, isolation and controlled switching are essential.

This 3-pole by-pass switch is supplied with a black plastic IP65 I-0-II pistol type handle, handle extension, shaft and bolt set for cable connection. The handle extension enables smooth manual operation and can be removed when padlocking the standard handle.

With a rated current of 160 A and a robust base-mounted construction, the OT160E03YP is ideal for demanding low-voltage installations. Its padlockable 0-position and door interlock functionality support safe working practices in switchboards, industrial panels and power management systems.

Key Advantages

• Reliable 160 A manual by-pass switch for industrial applications.
• 3-pole configuration suitable for three-phase power systems.
• Supplied with IP65 I-0-II pistol type handle and handle extension.
• Includes shaft and bolt set for secure cable connection.
• Handle padlockable in the 0-position for safe isolation.
• Designed for switchboards, control panels and power distribution systems.

Key Features

• ABB OT series manual by-pass switch.
• 160 A rated operational current.
• 3-pole switching configuration.
• I-0-II front operated switching.
• Black plastic IP65 pistol handle included.
• Snap-on handle extension for smooth manual operation.
• Shaft and bolt set supplied for cable connection.
• Door interlock in I and II positions and when padlocked.

Technical Specifications

• Manufacturer: ABB
• Series: OT By-Pass Switches
• Model: OT160E03YP
• Product type: Manual by-pass switch
• Product ID: 1SCA123551R1001
• EAN: 6417019543352
• Rated current: 160 A
• Number of poles: 3 pole
• Operation: I-0-II
• Operating mode: Front operated
• Mounting type: Base mounting
• Handle type: Black plastic pistol handle with extension
• Handle protection rating: IP65
• Rated insulation voltage: 1000 V
• Rated impulse withstand voltage: 12 kV
• Power loss per pole: 2.4 W
• Product net weight: approx. 5.6 kg
• Dimensions (H × W × D): approx. 150 × 194 × 236 mm

Reliable By-Pass Switching for Industrial Power Systems

Manual by-pass switches such as the ABB OT160E03YP allow operators to route power safely and reliably around equipment or between operating paths, depending on the installation design. The I-0-II switching arrangement gives clear mechanical positions for source selection, isolation and controlled manual switching.

The OT160E03YP is well suited to installations where dependable manual control, robust mechanical construction and secure isolation are required. Its padlockable handle, door interlock functionality and durable ABB switch-disconnector design make it a strong choice for industrial electrical environments.

Typical Applications

• Industrial by-pass switching systems.
• Switchboards and electrical distribution panels.
• Three-phase power control applications.
• Manual supply selection and isolation.
• Motor control centres and machinery panels.
• Commercial and industrial low-voltage installations.

Trusted by Electrical Engineers Worldwide

ABB OT by-pass switches are widely used by panel builders, electrical contractors and industrial engineers for dependable manual switching, safe isolation and robust low-voltage power control.
