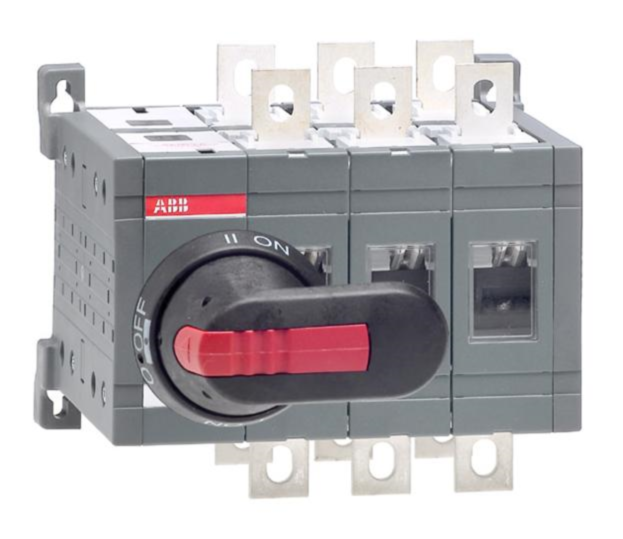

ABB ot160e03cp 160 amp 3 pole change-over switch
MPN: 1SCA022772R6510
Alt. SKU: OT160E03CP
Special Price
£504.94
£420.78
Regular Price
£776.83
Why Choose the OT160E03CP [1SCA022772R6510]
This 160A, 3-pole manual changeover switch features a robust black plastic IP65-rated pistol grip handle, available as detailed in the table below. It includes a shaft and bolt set designed for secure cable connection. The handle is padlockable in the 0 (off) position, with integrated door interlocks active in both the I and II positions, as well as when padlocked, ensuring safe and reliable operation in industrial and commercial electrical installations.
Technical Specification
- Function: 160A, 3-pole manual change-over switch with pistol type handle.
- Rated Operational Current (AC-21A, AC-22A, AC-23A): 160 A at 380–690 V.
- Rated Operational Voltage: 1000 V main circuit.
- Rated Insulation Voltage (Ui): 1000 V.
- Rated Impulse Withstand Voltage (Uimp): 12 kV.
- Degree of Protection: Front IP20, handle IP65.
- Terminal Type and Size: Screw terminals, 20 mm width, tightening torque 15–22 N·m.
- Mounting Type: Base mounting, front operating mode.
- Switch Poles: 3 poles.
- Short-time Withstand Current (1s): 8 kA rms.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated operational current of the switch?
The switch has a rated operational current of 160 A at 380–690 V.
What is the degree of protection for the handle?
The handle has a degree of protection rated at IP65.
How is the switch mounted?
The switch is base mounted and operates from the front.
What is the tightening torque for the terminal connections?
The tightening torque for the screw terminals is between 15–22 N·m.
What is the rated insulation voltage of the switch?
The rated insulation voltage (Ui) is 1000 V.
Can the handle be padlocked?
Yes, the handle is padlockable in the 0-position.
What standards and approvals does this switch conform to?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 1SCA022772R6510 |
|---|---|
| HS Code | 85365080 |
| Amperage | 160A |
| Number of Poles | 3 Pole |
| Country of Manufacture | Finland |
| Manufacturer | ABB |
| Mount Type | Base mounted |
| Alternative Product SKU | OT160E03CP |
| Barcode | 6417019251974 |
