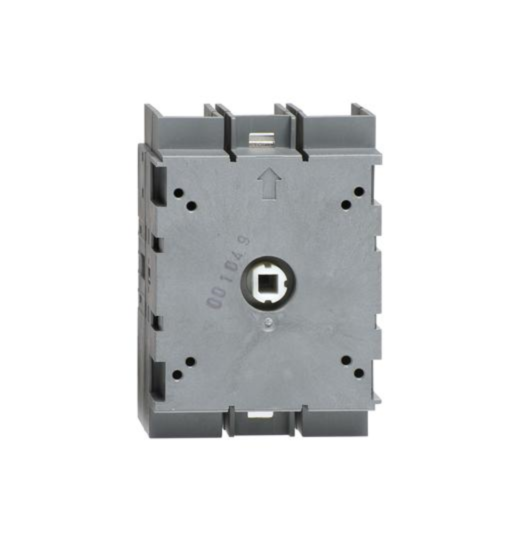

ABB ot125ft3 125 amp door mounted isolator 3 pole
MPN: 1SCA105060R1001
Alt. SKU: OT125FT3
Special Price
£80.57
£67.14
Regular Price
£123.95
Why Choose the OT125FT3 [1SCA105060R1001]
This 3-pole, front-operated, door-mounted switch-disconnector provides reliable non-fusible isolation. It features front-protected clamp terminals for secure wiring connections. Please note, the handle and shaft are supplied separately.
Technical Specification
- Function: 3-pole front operated door-mounted switch-disconnector, non-fusible.
- Rated Operational Current: 125 A (AC-21A/22A) up to 690 V.
- Rated Insulation Voltage (Ui): 750 V per IEC/EN 60664-1.
- Rated Impulse Withstand Voltage (Uimp): 8 kV.
- Degree of Protection: Front IP20.
- Terminal Type and Size Range: Screw terminals for Cu 10–70 mm² conductors.
- Mechanical Durability: 20,000 operations.
- Mounting Type: Door mounting with top/bottom line terminals configurable.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated operational current of the switch-disconnector?
The rated operational current is 125 A (AC-21A/22A) up to 690 V.
What is the degree of protection for this product?
The degree of protection is Front IP20.
What type of terminals does the switch-disconnector use?
It uses screw terminals for Cu conductors ranging from 10 to 70 mm².
How is the switch-disconnector mounted?
It is designed for door mounting with top/bottom line terminals configurable.
What is the mechanical durability of the switch?
The mechanical durability is rated for 20,000 operations.
What are the insulation and impulse withstand voltage ratings?
The rated insulation voltage is 750 V per IEC/EN 60664-1, and the rated impulse withstand voltage is 8 kV.
Are there any conformity standards for this product?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 1SCA105060R1001 |
|---|---|
| Amperage | 125A |
| Number of Poles | 3 Pole |
| Manufacturer | ABB |
| Mount Type | Door mounted |
| Alternative Product SKU | OT125FT3 |
| Product Lead Time | 1-2 days |
