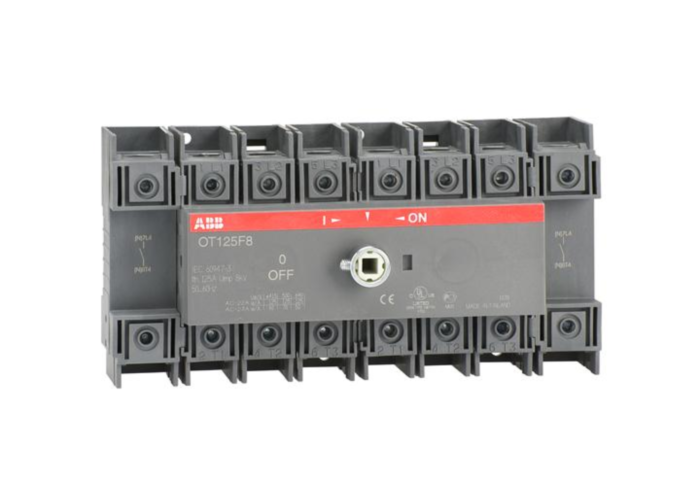

ABB ot125f8 125 amp load break switch 8 pole
MPN: 1SCA105059R1001
Alt. SKU: OT125F8
Special Price
£291.86
£243.22
Regular Price
£449.02
Why Choose the OT125F8 [1SCA105059R1001]
8-pole, front-operated, base-mounted switch-disconnector designed for DIN-rail installation. This non-fusible switch features front-protected clamp terminals for enhanced safety. Please note that the handle and shaft are supplied separately.
Technical Specification
- Function: 8-pole, front operated, base mounted non-fusible switch-disconnector, DIN-rail mountable.
- Rated Operational Voltage: Up to 750 V.
- Rated Current: 125 A (AC-21A and AC-22A), 90 A (AC-23A at 380–415 V).
- Contact Configuration: 8 poles with switched fourth pole (simultaneous function).
- Insulation & Impulse Rating: 750 V insulation voltage, 8 kV impulse withstand voltage.
- Degree of Protection: IP20 (front).
- Terminal Type & Size: Screw terminals for copper conductors, 10 to 70 mm² cable cross-section.
- Mechanical Durability: 20,000 operations.
- Power Loss: 6.3 W per pole at rated conditions.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the maximum rated operational voltage for this switch-disconnector?
The maximum rated operational voltage is up to 750 V.
What is the rated current capacity of this switch-disconnector?
The rated current is 125 A for AC-21A and AC-22A, and 90 A for AC-23A at 380–415 V.
What is the degree of protection for this product?
The degree of protection is IP20 for the front.
What type of terminals does this switch-disconnector use?
This switch-disconnector features screw terminals for copper conductors, accommodating cable cross-sections from 10 to 70 mm².
How many operations can this switch-disconnector endure mechanically?
The mechanical durability is rated for 20,000 operations.
Is the handle and shaft included with the switch-disconnector?
No, the handle and shaft are not included.
What are the insulation and impulse ratings for this product?
The insulation voltage is 750 V, and the impulse withstand voltage is 8 kV.
| Manufacturer Part Number | 1SCA105059R1001 |
|---|---|
| HS Code | 85365080 |
| Amperage | 125A |
| Number of Poles | 8 Pole |
| Country of Manufacture | Finland |
| Manufacturer | ABB |
| Mount Type | Base mounted |
| Alternative Product SKU | OT125F8 |
| Barcode | 6417019391892 |
