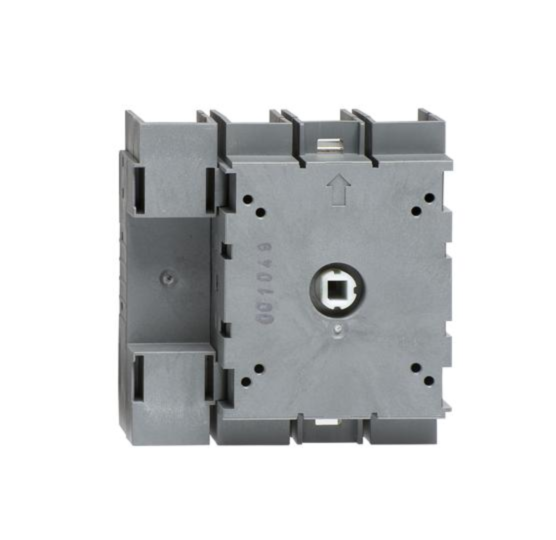

ABB ot100ft4n2 100 amp door mounted isolator 4 pole
MPN: 1SCA105031R1001
Alt. SKU: OT100FT4N2
Special Price
£98.88
£82.40
Regular Price
£152.12
Why Choose the OT100FT4N2 [1SCA105031R1001]
This 4-pole, front-operated door-mounted switch-disconnector provides reliable isolation for electrical circuits. It features front-protected clamp terminals for secure and safe wiring connections. Please note that the handle and shaft are supplied separately, allowing for flexible installation options. This non-fusible switch-disconnector is ideal for applications requiring robust circuit control without integrated fusing.
Technical Specification
- Function: 4-pole front operated door mounted non-fusible disconnect switch.
- Rated Operational Voltage: Up to 750 V.
- Rated Operational Current: 100 A (AC-21A/AC-22A), 80 A (AC-23A at 380-415 V).
- Contact Configuration: 4 poles with switched simultaneous fourth pole on right side.
- Rated Insulation Voltage: 750 V (IEC/EN 60664-1).
- Rated Impulse Withstand Voltage: 8 kV.
- Degree of Protection: Front IP20.
- Terminal Type and Size: Screw terminals for Cu 10–70 mm² conductors.
- Mechanical Durability: 20,000 operations.
- Mounting Type: Door mounting, handle and shaft not included.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the function of this switch?
This is a 4-pole, front operated, door mounted, non-fusible disconnect switch.
What is the rated operational voltage and current?
The switch has a rated operational voltage of up to 750 V and a rated operational current of 100 A (AC-21A/AC-22A) or 80 A (AC-23A at 380-415 V).
What type of terminals does this switch use?
The switch features screw terminals for copper conductors sized 10–70 mm².
What is the degree of protection for this switch?
The switch has a degree of protection rated at IP20.
How many mechanical operations can this switch endure?
This switch is mechanically durable for up to 20,000 operations.
Is a handle and shaft included with the switch?
No, the handle and shaft are not included with the switch.
What standards does this switch conform to?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 1SCA105031R1001 |
|---|---|
| HS Code | 85365080 |
| Amperage | 100A |
| Number of Poles | 4 Pole |
| Country of Manufacture | Finland |
| Manufacturer | ABB |
| Mount Type | Door mounted |
| Alternative Product SKU | OT100FT4N2 |
| Barcode | 6417019391618 |
