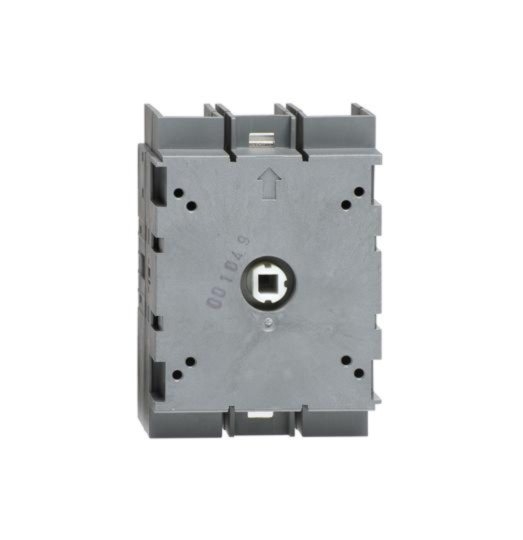

ABB ot100ft3 100 amp door mounted isolator 3 pole
MPN: 1SCA105023R1001
Alt. SKU: OT100FT3
Special Price
£78.20
£65.17
Regular Price
£120.31
Why Choose the OT100FT3 [1SCA105023R1001]
This 3-pole, front-operated door-mounted switch-disconnector provides reliable isolation for electrical circuits. It features front-protected clamp terminals for secure and safe connections. Please note that the handle and shaft are supplied separately, allowing for flexible configuration to suit specific installation requirements.
Technical Specification
- Function: 3-pole, front operated, door mounted switch-disconnector without fuse.
- Rated Operational Current: 100 A (AC-21A, AC-22A) at 380–690 V.
- Insulation Voltage: 750 V (IEC/EN 60664-1).
- Impulse Withstand Voltage: 8 kV.
- Degree of Protection: IP20 (front).
- Terminal Type and Size: Screw terminals, suitable for flexible and stranded copper conductors 10–70 mm².
- Mechanical Durability: 20,000 operations.
- Power Loss: 4.0 W per pole at rated conditions.
- Rated Short-Circuit Current: Up to 50 kA with appropriate fusing.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated operational current of the switch-disconnector?
The rated operational current is 100 A (AC-21A, AC-22A) at 380–690 V.
What is the insulation voltage for this product?
The insulation voltage is 750 V (IEC/EN 60664-1).
What type of terminals does this switch-disconnector use?
It has screw terminals suitable for flexible and stranded copper conductors ranging from 10–70 mm².
What is the degree of protection for this product?
The degree of protection is IP20 (front).
How many mechanical operations can this switch-disconnector endure?
It has a mechanical durability of 20,000 operations.
What is the power loss per pole at rated conditions?
The power loss is 4.0 W per pole at rated conditions.
What is the rated short-circuit current for this switch?
The rated short-circuit current is up to 50 kA with appropriate fusing.
| Manufacturer Part Number | 1SCA105023R1001 |
|---|---|
| HS Code | 85365080 |
| Amperage | 100A |
| Number of Poles | 3 Pole |
| Country of Manufacture | Finland |
| Manufacturer | ABB |
| Mount Type | Door mounted |
| Alternative Product SKU | OT100FT3 |
