ABB orion1-4-30-045-b
MPN: 2TLA022302R0200
Alt. SKU: Orion1-4-30-045-B
Special Price
£967.01
£805.84
Regular Price
£1,137.66
Why Choose the Orion1-4-30-045-B [2TLA022302R0200]

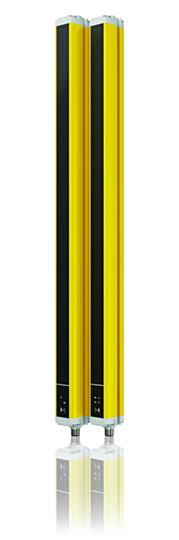

Orion1 Base Light Curtain, Transmitter + Receiver, Resolution=30mm (hand), Protected height=450mm, Range=0.2-19m, Type 4. Orion1 Base is an easy to use light curtain with compact dimensions and two resolutions for detection of fingers and hands. Light curtains are usually used closed to the hazardous zone when repeated access to the machine is necessary, for example manually serviced machines. Light curtains can also be used to limit work zones inside the hazardous area and be mounted horizontally for area protection.
Technical Specification
- Function: Light curtain for finger and hand detection.
- Resolution: 30 mm.
- Protected Height: 450 mm.
- Operating Distance: 0.2 to 19 metres.
- Type Rating: Type 4 safety device.
- Weight: 1.386 kg.
- Detection Type: Finger and hand without muting.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the resolution of the Orion1 Base Light Curtain?
The resolution of the Orion1 Base Light Curtain is 30 mm, designed for finger and hand detection.
What is the protected height of the Orion1 Base Light Curtain?
The protected height of the Orion1 Base Light Curtain is 450 mm.
What is the operating range of the Orion1 Base Light Curtain?
The operating distance of the Orion1 Base Light Curtain ranges from 0.2 to 19 metres.
What type rating does the Orion1 Base Light Curtain have?
The Orion1 Base Light Curtain is rated as a Type 4 safety device.
Can the Orion1 Base Light Curtain be mounted horizontally?
Yes, the Orion1 Base Light Curtain can be mounted horizontally for area protection.
What is the weight of the Orion1 Base Light Curtain?
The weight of the Orion1 Base Light Curtain is 1.386 kg.
Is there any conformity information available for the Orion1 Base Light Curtain?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer | ABB |
|---|---|
| HS Code | 85371098 |
| Barcode | 7350024481525 |
| Country of Manufacture | Hungary |
| Alternative Product SKU | Orion1-4-30-045-B |
| Manufacturer Part Number | 2TLA022302R0200 |
