ABB orion1-4-14-015-b
MPN: 2TLA022300R0000
Alt. SKU: Orion1-4-14-015-B
Special Price
£768.32
£640.27
Regular Price
£903.91
Why Choose the Orion1-4-14-015-B [2TLA022300R0000]

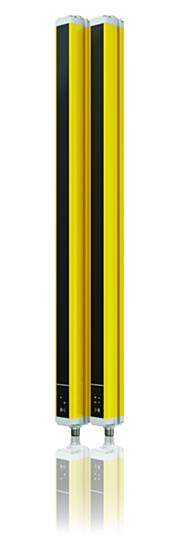

Orion1 Base Light Curtain, Transmitter + Receiver, Resolution=14mm (finger), Protected height=150mm, Range=0.2-6m, Type 4. Orion1 Base is an easy to use light curtain with compact dimensions and two resolutions for detection of fingers and hands. Light curtains are usually used closed to the hazardous zone when repeated access to the machine is necessary, for example manually serviced machines. Light curtains can also be used to limit work zones inside the hazardous area and be mounted horizontally for area protection.
Technical Specification
- Function: Finger and hand detection light curtain.
- Resolution: 14 mm (finger detection).
- Optical Field Height: 150 mm protected height.
- Operating Distance: 0.2 to 6 metres.
- Type Rating: Type 4 safety.
- Weight: 0.606 kg.
- Protection Rating: Suitable for industrial environments (exact IP rating not specified).
- Use Case: Machine access protection and hazardous area zone limitation.
- Terminal Type and Size: Not specified; check datasheet for connection details.
- Durability: Compact design for easy installation near hazardous zones.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the resolution of the Orion1 Base Light Curtain?
The resolution is 14 mm, designed for finger detection.
What is the protected height of the light curtain?
The optical field height is 150 mm.
What is the operating range of the Orion1 Base Light Curtain?
The operating distance ranges from 0.2 to 6 metres.
What type rating does the Orion1 Base Light Curtain have?
It has a Type 4 safety rating.
Can the light curtain be mounted horizontally?
Yes, it can be mounted horizontally for area protection.
What is the weight of the Orion1 Base Light Curtain?
The weight is 0.606 kg.
What should I check for terminal connection details?
Please refer to the manufacturer's data sheet for connection details.
| Manufacturer | ABB |
|---|---|
| Barcode | 7350024481273 |
| Alternative Product SKU | Orion1-4-14-015-B |
| Manufacturer Part Number | 2TLA022300R0000 |
| Product Lead Time | Contact us for a delivery time before you order |
