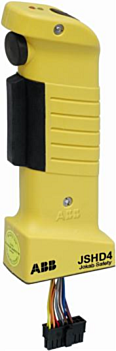

ABB jshd4-4 top part
MPN: 2TLA020006R2400
Alt. SKU: JSHD4-4
Special Price
£421.79
£351.49
Regular Price
£496.22
Why Choose the JSHD4-4 [2TLA020006R2400]
The JSHD4-4 is a top part of a three-position device JSHD4. It has LEDs and a front button. It must be used with one of the following bottom parts: AB, AD, AH, AJ, AK, AL. Anti-tamper can be chosen as option with all except bottom part AK. Three-position devices are used to allow a limited movement of the machine when the operator is in the dangerous area, for example during troubleshooting, test running and programming.
Technical Specification
- Function: Top part of three-position device with LEDs and front button; requires compatible bottom part (AB, AD, AH, AJ, AK, AL).
- Rated Operational Voltage: 24 V DC.
- Rated Operational Current DC-12: 0.02 A at 24 V DC.
- Contact Configuration: 2 changeover (CO) contacts, no normally open (NO) or normally closed (NC) contacts.
- Maximum Switching Current: 0.02 mA (Main Circuit).
- Maximum Switching Voltage: 30 V (Main Circuit).
- Minimum Switching Capacity: 8 mA, 10 V DC (Main Circuit).
- Mechanical Service Life: 1 million cycles (top to middle position), 100,000 cycles (middle to bottom position and front pushbutton).
- Operating Force: Approx. 15 N (ON position), 45 N (OFF position), 2.5 N (top/front pushbutton).
- Enclosure Type: UL/CSA rated type 1.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the function of the JSHD4-4 device?
The JSHD4-4 is the top part of a three-position device designed to allow limited movement of machinery when the operator is in a dangerous area, such as during troubleshooting or test running.
Which bottom parts are compatible with the JSHD4-4?
The JSHD4-4 is compatible with the following bottom parts: AB, AD, AH, AJ, AK, and AL.
What is the rated operational voltage for the JSHD4-4?
The rated operational voltage for the JSHD4-4 is 24 V DC.
What is the maximum switching current for the JSHD4-4?
The maximum switching current for the JSHD4-4 is 0.02 mA in the main circuit.
What is the mechanical service life of the JSHD4-4?
The mechanical service life is 1 million cycles for the top to middle position and 100,000 cycles for the middle to bottom position and front pushbutton.
Is anti-tamper an option for the JSHD4-4?
Yes, anti-tamper can be chosen as an option with all bottom parts except for the AK model.
What are the enclosure ratings for the JSHD4-4?
The JSHD4-4 has a UL/CSA rated type 1 enclosure.
| Manufacturer | ABB |
|---|---|
| HS Code | 85365019 |
| Barcode | 7350024459753 |
| Country of Manufacture | Sweden |
| Alternative Product SKU | JSHD4-4 |
| Manufacturer Part Number | 2TLA020006R2400 |
| Product Lead Time | Contact us for a delivery time before you order |
