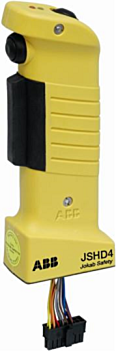

ABB jshd4-2 top part
MPN: 2TLA020006R2200
Alt. SKU: JSHD4-2
Special Price
£445.93
£371.61
Regular Price
£524.63
Why Choose the JSHD4-2 [2TLA020006R2200]
The JSHD4-2 is a top part of a three-position device JSHD4. It has LEDs, a front button and a top button. It must be used with one of the following bottom parts: AB, AD, AH, AJ, AK, AL. Anti-tamper can be chosen as option with all except bottom part AK. Three-position devices are used to allow a limited movement of the machine when the operator is in the dangerous area, for example during troubleshooting, test running and programming.
Technical Specification
- Function: Three-position device top part with LEDs, front and top buttons, for use with specified bottom parts (AB, AD, AH, AJ, AK, AL).
- Rated Operational Voltage: 24 V DC.
- Rated Operational Current DC-12 (Ie): 0.02 A (24 V DC).
- Contact Configuration: 2 changeover contacts (CO), no normally closed (NC) or normally open (NO) contacts.
- Maximum Switching Voltage: 30 V (main circuit).
- Minimum Switching Capacity: 8 mA at 10 V DC (main circuit).
- Mechanical Service Life: 1 million cycles (top to middle), 100,000 cycles (middle to bottom and pushbuttons).
- Operating Force: Approx. 15 N (three-position ON), Approx. 45 N (three-position OFF), Approx. 2.5 N (pushbuttons).
- Enclosure Rating: UL/CSA Type 1.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the function of the JSHD4-2 device?
The JSHD4-2 is a three-position device top part designed to allow limited movement of machinery when the operator is in a dangerous area, useful for troubleshooting, test running, and programming.
Which bottom parts are compatible with the JSHD4-2?
The JSHD4-2 is compatible with the following bottom parts: AB, AD, AH, AJ, AK, and AL.
What is the rated operational voltage and current for the JSHD4-2?
The rated operational voltage is 24 V DC, and the rated operational current is 0.02 A at 24 V DC.
What is the enclosure rating of the JSHD4-2?
The enclosure rating is UL/CSA Type 1.
What is the mechanical service life of the JSHD4-2?
The mechanical service life is 1 million cycles for the top to middle position and 100,000 cycles for the middle to bottom and pushbuttons.
Can anti-tamper options be selected for the JSHD4-2?
Yes, anti-tamper options can be chosen with all bottom parts except for the AK model.
What is the maximum switching voltage for the JSHD4-2?
The maximum switching voltage is 30 V for the main circuit.
| Manufacturer | ABB |
|---|---|
| HS Code | 85365019 |
| Barcode | 7350024459739 |
| Country of Manufacture | Sweden |
| Alternative Product SKU | JSHD4-2 |
| Manufacturer Part Number | 2TLA020006R2200 |
