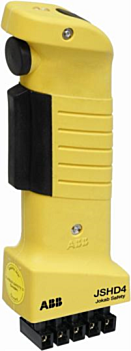

ABB jshd4-1 top part
MPN: 2TLA020006R2100
Alt. SKU: JSHD4-1
Special Price
£319.16
£265.97
Regular Price
£375.48
Why Choose the JSHD4-1 [2TLA020006R2100]
The JSHD4-3 is a top part of a three-position device JSHD4. It has no LEDs and no extra buttons. It must be used with one of the following bottom parts: AB, AD, AH, AJ, AK, AL. Anti-tamper can be chosen as option with all except bottom part AK. Three-position devices are used to allow a limited movement of the machine when the operator is in the dangerous area, for example during troubleshooting, test running and programming.
Technical Specification
- Function: Top part of a three-position device; operates with specified bottom parts (AB, AD, AH, AJ, AK, AL).
- Operating Voltage: 24 V DC.
- Maximum Switching Current: 0.02 A (DC-12, 24 V).
- Contact Configuration: 1 changeover contact (CO), 0 NC, 1 NO.
- Operating Force: Approx. 15 N (ON position), 45 N (OFF position), 2.5 N (top/front pushbutton).
- Mechanical Service Life: 1 million cycles (top to middle), 100,000 cycles (middle to bottom and pushbutton).
- Connection Interface: Contact-based (depends on bottom part configuration).
- Weight: 0.139 kg.
- Enclosure Rating: UL/CSA Type 1.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the function of the JSHD4-3?
The JSHD4-3 is the top part of a three-position device, allowing limited machine movement during operator presence in hazardous areas.
Which bottom parts are compatible with the JSHD4-3?
The JSHD4-3 is compatible with bottom parts AB, AD, AH, AJ, AK, and AL.
What is the operating voltage of the JSHD4-3?
The operating voltage is 24 V DC.
What is the maximum switching current for the JSHD4-3?
The maximum switching current is 0.02 A (DC-12, 24 V).
What is the mechanical service life of the JSHD4-3?
The mechanical service life is 1 million cycles for top to middle and 100,000 cycles for middle to bottom and pushbutton.
What is the enclosure rating of the JSHD4-3?
The enclosure rating is UL/CSA Type 1.
Is anti-tamper available for the JSHD4-3?
Yes, anti-tamper can be chosen as an option with all bottom parts except AK.
| Manufacturer | ABB |
|---|---|
| HS Code | 85365019 |
| Barcode | 7350024459722 |
| Country of Manufacture | Sweden |
| Alternative Product SKU | JSHD4-1 |
| Manufacturer Part Number | 2TLA020006R2100 |
