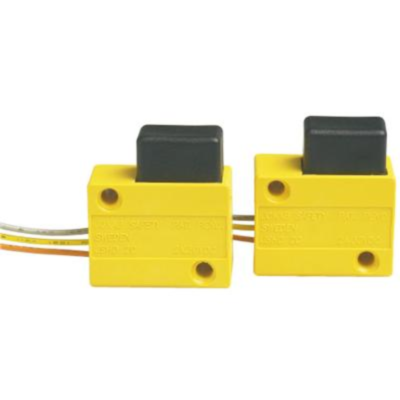

ABB jshd2c type e Enabling Switch
MPN: 2TLA020001R1000
Alt. SKU: JSHD2C type E
Special Price
£51.36
£42.80
Regular Price
£60.42
Why Choose the JSHD2C type E [2TLA020001R1000]
The JSHD2C Type E is a three-position pushbutton with gold plated contacts and 3 leads, each 190 mm. The force needed to actuate the push-button from middle to bottom is 20 N. Three-position pushbuttons are usually used in pair in a three-position device.
Technical Specification
- Function: Three-position pushbutton with gold plated contacts.
- Contact Configuration: 1 normally closed (NC) and 1 normally open (NO) contact.
- Connection: 3 leads, each 190 mm in length.
- Rated Operational Current (DC-12): 0.02 A at 24 V DC.
- Actuation Force: 20 N from middle to bottom position.
- Mechanical Service Life: Over 1 million cycles (top to middle), over 100,000 cycles (middle to bottom).
- Weight: 0.01 kg.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the function of the JSHD2C Type E pushbutton?
The JSHD2C Type E is a three-position pushbutton designed for control applications, featuring gold plated contacts.
What is the contact configuration of this pushbutton?
The pushbutton has 1 normally closed (NC) contact and 1 normally open (NO) contact.
What is the actuation force required for this pushbutton?
The actuation force needed to move the pushbutton from the middle to the bottom position is 20 N.
What is the rated operational current for the JSHD2C Type E?
The rated operational current is 0.02 A at 24 V DC.
What is the mechanical service life of this pushbutton?
The mechanical service life is over 1 million cycles from top to middle and over 100,000 cycles from middle to bottom.
What is the length of the leads on this pushbutton?
Each lead is 190 mm in length.
Are there any specific standards or approvals for this product?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer | ABB |
|---|---|
| HS Code | 85365080 |
| Barcode | 7350024456837 |
| Country of Manufacture | China |
| Alternative Product SKU | JSHD2C type E |
| Manufacturer Part Number | 2TLA020001R1000 |
