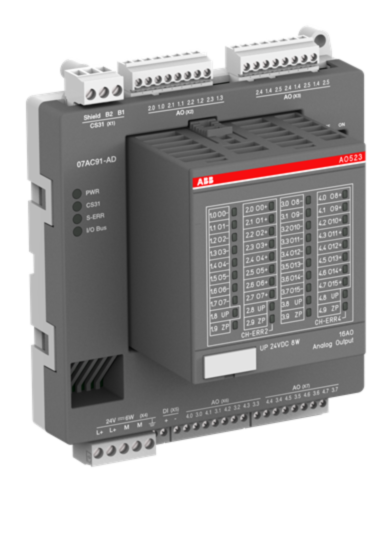

ABB GJR5252300R0101 07AC91-AD:Analog Conf. Output module
MPN: 1SAP800000R0010
Alt. SKU: 07AC91-AD
Why Choose the Distributed Automation PLCs [1SAP800000R0010]
The 07AC91-AD Analog Configuration Output Module provides 16 analogue outputs with 12-bit resolution plus sign, supporting both voltage and current signals. It operates on a 24V DC supply and interfaces via the CS31 bus using a 2-wire connection. The module features pluggable terminals for straightforward installation and maintenance, ensuring reliable performance in industrial control and automation systems.
Technical Specification
- Function: Analog configurable output module, 16 outputs.
- Output Type: Voltage/Current, 12-bit resolution with sign.
- Supply Voltage: 24 V DC.
- Bus Interface: CS31 Bus, 2-wire connection.
- Terminal Type: Pluggable terminals.
- Weight: 0.45 kg.
- Category: Distributed Automation PLC.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the function of the 07AC91-AD module?
The 07AC91-AD is an analog configurable output module with 16 outputs, capable of providing voltage or current signals.
What is the resolution of the outputs?
The module features a 12-bit resolution for its output signals.
What is the supply voltage for this module?
The 07AC91-AD operates on a supply voltage of 24 V DC.
What type of bus interface does this module use?
This module uses a CS31 Bus interface with a 2-wire connection.
What type of terminals does the module have?
The module is equipped with pluggable terminals for easy connection.
What is the weight of the 07AC91-AD module?
The weight of the module is 0.45 kg.
What standards and approvals does this module conform to?
See the manufacturer's data sheet for standards and approvals.
| PLC Range | AC500 |
|---|---|
| Barcode | 4013614495151 |
| Manufacturer | ABB |
| Manufacturer Part Number | 1SAP800000R0010 |
| Module type | Output Module |
| Alternative Product SKU | 07AC91-AD |
Write Your Own Review
AC500 PLC range
The AC500 PLC range provides a powerful and platform enabling you to create and design cost-effective, scalable, and highly flexible automation solutions with a range of benefits. This includes scalability achieved through a wide range of devices for the implementation and design of control task configurations and complex automation solutions. Additional benefits are action flexibility in a single integrated piece of software, and cost-effectiveness through a variety of I/O modules, CPUs, communication interface modules, communication modules, and accessories.
You can expect high-performance and memory capacities in networking capabilities provided advanced visualization, increased functionality, improved operating comfort, and highly individual client solutions. The AC500-eCo comes with the additional advantages of enhanced scalability, exceptional ease of handling, and increased flexibility through its approval for client use by globally accredited certification organizations. The result is a reliable and safe range that can be deployed on a global scale.
| The AC500 offers effective scalability through a wide variety of devices for the design and implementation of configurations suitable for controlling simple tasks and complex automation solutions. It provides flexibility in a single piece of integrated software that's cost-effective, with various I/O modules, CPUs, communication interface modules, communication modules, and accessories. ABB’s lifecycle policy and “all modules used on any CPUs concept” allows swift reactions, flexibility, and economical solutions, with the required reliability, security and ease needed to expand the automation system and meet new challenges. High levels of memory, performance, and networking capabilities allow for superior individual customer solutions. |
