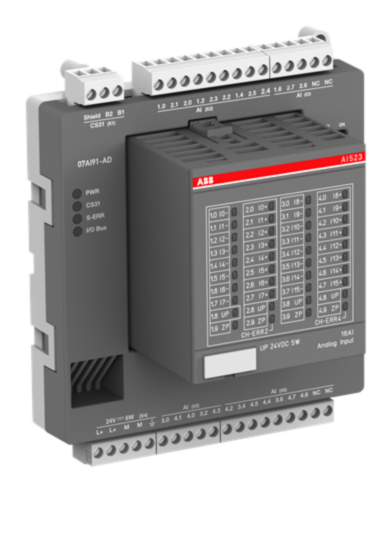

ABB GJR5251600R0202 07AIC91-AD:Analog Input module 16AI
MPN: 1SAP800200R0010
Alt. SKU: 07AI91-AD
Why Choose the Distributed Automation PLCs [1SAP800200R0010]
The 07AIC91-AD is a 16-channel analog input module designed for voltage, current, and RTD signals. It features 12-bit resolution with signed data output and operates on a 24V DC supply. Compatible with the CS31 bus system, the module supports 2- and 3-wire sensor configurations and utilises pluggable terminals for straightforward installation and maintenance. This module is ideal for precise signal acquisition in industrial automation and control applications.
Technical Specification
- Function: Analog Input module for 16 inputs (AI) supporting voltage, current, and RTD signals.
- Resolution: 12-bit plus sign for precise data acquisition.
- Supply Voltage: 24 V DC.
- Communication Bus: CS31 Bus compatible.
- Wiring Configuration: Supports 2-wire and 3-wire sensor connections.
- Terminal Type: Pluggable terminals for secure and easy wiring.
- Weight: 0.45 kg.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What types of signals does the 07AIC91-AD module support?
The 07AIC91-AD module supports voltage, current, and RTD signals for its 16 analog inputs.
What is the resolution of the analog inputs?
The resolution of the analog inputs is 12-bit plus sign, allowing for precise data acquisition.
What is the supply voltage required for the module?
The module requires a supply voltage of 24 V DC.
Is the module compatible with any specific communication bus?
Yes, the 07AIC91-AD module is compatible with the CS31 Bus.
What wiring configurations does the module support?
The module supports both 2-wire and 3-wire sensor connections.
What type of terminals does the module use?
The module features pluggable terminals for secure and easy wiring.
What are the weight specifications for the module?
The weight of the 07AIC91-AD module is 0.45 kg.
| PLC Range | AC500 |
|---|---|
| Barcode | 4013614495175 |
| Manufacturer | ABB |
| Manufacturer Part Number | 1SAP800200R0010 |
| Module type | ANALOGUE I/O |
| Alternative Product SKU | 07AI91-AD |
Write Your Own Review
AC500 PLC range
The AC500 PLC range provides a powerful and platform enabling you to create and design cost-effective, scalable, and highly flexible automation solutions with a range of benefits. This includes scalability achieved through a wide range of devices for the implementation and design of control task configurations and complex automation solutions. Additional benefits are action flexibility in a single integrated piece of software, and cost-effectiveness through a variety of I/O modules, CPUs, communication interface modules, communication modules, and accessories.
You can expect high-performance and memory capacities in networking capabilities provided advanced visualization, increased functionality, improved operating comfort, and highly individual client solutions. The AC500-eCo comes with the additional advantages of enhanced scalability, exceptional ease of handling, and increased flexibility through its approval for client use by globally accredited certification organizations. The result is a reliable and safe range that can be deployed on a global scale.
| The AC500 offers effective scalability through a wide variety of devices for the design and implementation of configurations suitable for controlling simple tasks and complex automation solutions. It provides flexibility in a single piece of integrated software that's cost-effective, with various I/O modules, CPUs, communication interface modules, communication modules, and accessories. ABB’s lifecycle policy and “all modules used on any CPUs concept” allows swift reactions, flexibility, and economical solutions, with the required reliability, security and ease needed to expand the automation system and meet new challenges. High levels of memory, performance, and networking capabilities allow for superior individual customer solutions. |
