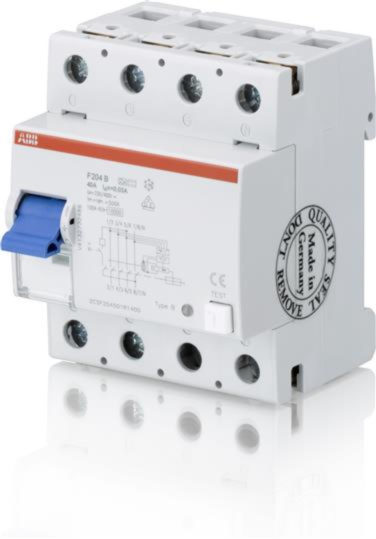

ABB f204b-125/0.3l 4p rcd 125a 300ma
MPN: 2CSF204523R3950
Alt. SKU: F204 B-125/0.3-L
Special Price
£4,380.17
£3,650.14
Regular Price
£7,300.27
Why Choose the F204 B-125/0.3-L [2CSF204523R3950]
The RCCBs F200 series assures protection to people and installations against fault current to earth. A large offer for standard instantaneous and selective AC and A types is completed with some configurations for special applications. This product is particularly suitable for the protection against smooth d.c. earth fault currents.
Technical Specification
- Type of Residual Current: Type B, suitable for smooth DC earth fault currents.
- Rated Voltage: 150…250 V.
- Maximum Surge Current: 3 kA.
- Number of Poles: 4P.
- Operating Characteristic: 10 ms delay for high immunity.
- Terminal Type and Capacity: Failsafe bi-directional cylinder-lift screw terminals; busbar 10 mm², rigid and flexible cables 35 mm².
- Rated Cross-Section: Multi-wired 0–25 mm²; solid-core 50 mm².
- Electrical Endurance: 2000 cycles.
- Mechanical Endurance: 5000 cycles.
- Position of Neutral Terminals: Left.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What type of residual current does the RCCB F200 series support?
The RCCB F200 series supports Type B residual current, suitable for smooth DC earth fault currents.
What is the rated voltage for the RCCB F200 series?
The rated voltage for the RCCB F200 series is 150 to 250 V.
What is the maximum surge current rating?
The maximum surge current rating is 3 kA.
How many poles does the RCCB F200 series have?
The RCCB F200 series is available in a 4-pole configuration.
What is the terminal capacity for the RCCB F200 series?
The terminal type is failsafe bi-directional cylinder-lift screw terminals with a busbar capacity of 10 mm² and rigid/flexible cable capacity of 35 mm².
What is the electrical endurance of the RCCB F200 series?
The electrical endurance is rated for 2000 cycles.
Where are the neutral terminals positioned?
The position of the neutral terminals is on the left.
| Manufacturer Part Number | 2CSF204523R3950 |
|---|---|
| Amperage | 125A |
| Number of Poles | 4 Pole |
| HS Code | 85363030 |
| Country of Manufacture | Germany |
| Manufacturer | ABB |
| Alternative Product SKU | F204 B-125/0.3-L |
| Barcode | 8012542989202 |
