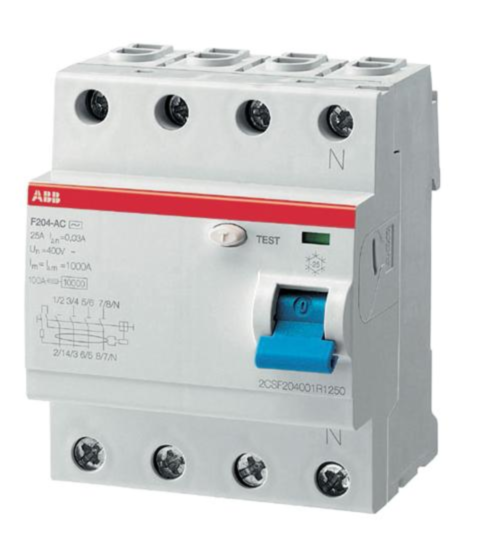

ABB f204a-25/0.5 4p rcd 25a 500ma
MPN: 2CSF204101R4250
Alt. SKU: F204 A-25/0.5
Special Price
£145.61
£121.34
Regular Price
£242.68
Why Choose the F204 A-25/0.5 [2CSF204101R4250]
The RCCBs F200 series assures protection to people and installations against fault current to earth. A large offer for standard instantaneous and selective AC and A types is completed with some configurations for special applications.
Technical Specification
- Function: Residual Current Circuit Breaker, Type A for earth fault protection.
- Operating Voltage: 110-254 V AC.
- Number of Poles: 4P with neutral terminals on right.
- Operating Characteristic: Instantaneous trip.
- Electrical Endurance: 10,000 cycles.
- Mechanical Endurance: 20,000 cycles.
- Terminal Type and Capacity: Screw terminals for rigid and flexible conductors 0-25 mm²; busbar connection up to 10 mm².
- Tightening Torque: 2.8 N·m.
- Wire Stripping Length: 12 mm.
- Maximum Operating Voltage UL/CSA: 480Y / 277 V AC.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the function of the RCCB F200 series?
The RCCB F200 series provides protection against fault current to earth, ensuring safety for people and installations.
What types of earth fault protection does the RCCB F200 series offer?
It offers standard instantaneous and selective AC and A types, along with configurations for special applications.
What is the maximum operating voltage for the RCCB F200 series?
The maximum operating voltage is 480Y / 277 V AC.
What is the cable capacity for the terminals?
The terminal type supports rigid and flexible conductors from 0-25 mm², with busbar connections up to 10 mm².
What is the tightening torque for the terminals?
The tightening torque required is 2.8 N·m.
How many poles does the RCCB F200 series have?
The RCCB F200 series features 4 poles with neutral terminals on the right.
What is the electrical endurance of the RCCB F200 series?
The electrical endurance is rated for 10,000 cycles.
| Manufacturer Part Number | 2CSF204101R4250 |
|---|---|
| Amperage | 25A |
| Number of Poles | 4 Pole |
| Manufacturer | ABB |
| Alternative Product SKU | F204 A-25/0.5 |
| Barcode | 8012542784005 |
| Product Lead Time | Delivery 3/4 Days |
