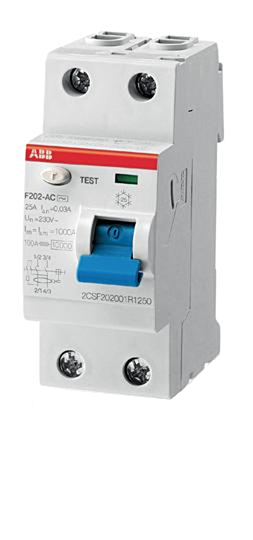

ABB f202ac-40/0.5 2 pole rcd 40a 500ma
MPN: 2CSF202001R4400
Alt. SKU: F202 AC-40/0.5
Special Price
£123.31
£102.76
Regular Price
£205.52
Why Choose the F202 AC-40/0.5 [2CSF202001R4400]
The RCCBs F200 series assures protection to people and installations against fault current to earth. A large offer for standard instantaneous and selective AC and A types is completed with some configurations for special applications.
Technical Specification
- Type of Residual Current: Type AC.
- Operating Voltage: 110-254 V.
- Maximum Surge Current: 0.25 kA.
- Number of Poles: 2P.
- Operating Characteristic: Instantaneous.
- Electrical Endurance: 10,000 cycles.
- Mechanical Endurance: 20,000 cycles.
- Terminal Type: Screw terminals with 12 mm wire stripping length.
- Connecting Capacity: Busbar 10 mm², rigid and flexible wires 25 mm².
- Maximum Operating Voltage UL/CSA: 277 V AC.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What type of residual current does the RCCB F200 series use?
The RCCB F200 series uses Type AC residual current.
What is the maximum operating voltage for the RCCB F200 series?
The maximum operating voltage is 277 V AC.
What is the cable capacity for connecting to the RCCB F200 series?
The connecting capacity is 10 mm² for busbar and 25 mm² for rigid and flexible wires.
How many poles does the RCCB F200 series have?
The RCCB F200 series has 2 poles.
What is the electrical endurance of the RCCB F200 series?
The electrical endurance is rated for 10,000 cycles.
What is the mechanical endurance of the RCCB F200 series?
The mechanical endurance is rated for 20,000 cycles.
What standards and approvals does the RCCB F200 series conform to?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 2CSF202001R4400 |
|---|---|
| Amperage | 40A |
| Number of Poles | 2 Pole |
| Manufacturer | ABB |
| Alternative Product SKU | F202 AC-40/0.5 |
| Barcode | 8012542781004 |
