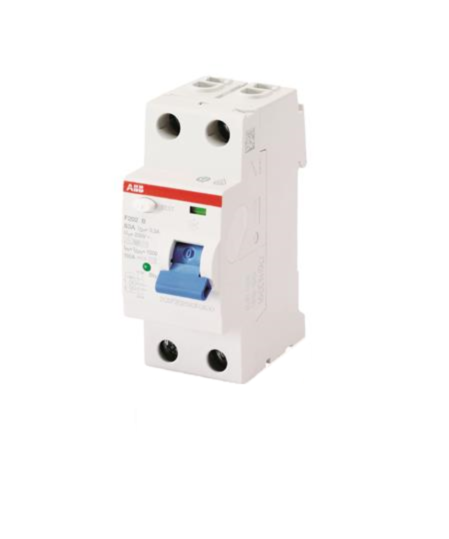

ABB f202 a-40/0,1 2 pole rcd 40a 100ma
MPN: 2CSF202101R2400
Alt. SKU: F202 A-40/0.1
Special Price
£144.07
£120.06
Regular Price
£240.12
Why Choose the F202 A-40/0.1 [2CSF202101R2400]
The RCCBs F200 series assures protection to people and installations against fault current to earth. A large offer for standard instantaneous and selective AC and A types is completed with some configurations for special applications.
Technical Specification
- Function: Residual Current Circuit Breaker (RCCB), Type A.
- Rated Voltage: 110-254 V AC.
- Poles: 2P (Two poles).
- Operating Characteristic: Instantaneous trip.
- Rated Current: 40 A.
- Electrical Endurance: 10,000 cycles.
- Mechanical Endurance: 20,000 cycles.
- Terminal Type: Screw terminals, suitable for rigid and flexible conductors 0–25 mm² solid core and multi-wired.
- Tightening Torque: 2.8 N·m.
- Modular Width: 2 DIN rail modules.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the function of the RCCB F200 series?
The RCCB F200 series provides protection against fault current to earth for people and installations.
What is the rated voltage for the RCCB F200 series?
The rated voltage is 110-254 V AC.
How many poles does the RCCB F200 series have?
The RCCB F200 series has 2 poles (2P).
What is the rated current of the RCCB F200 series?
The rated current is 40 A.
What is the tightening torque for the terminals?
The tightening torque is 2.8 N·m.
What is the cable capacity for the terminals?
The terminals are suitable for rigid and flexible conductors from 0–25 mm² solid core and multi-wired.
What is the electrical endurance of the RCCB F200 series?
The electrical endurance is rated for 10,000 cycles.
| Manufacturer Part Number | 2CSF202101R2400 |
|---|---|
| Amperage | 40A |
| Number of Poles | 2 Pole |
| HS Code | 85363030 |
| Country of Manufacture | Italy |
| Manufacturer | ABB |
| Alternative Product SKU | F202 A-40/0.1 |
| Barcode | 8012542787006 |
