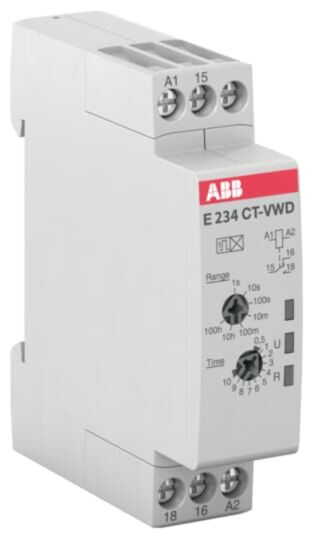

abb ct-vwd.12 timer impulse on 0.05 s ... 100 h 1c/o
MPN: 1SVR500130R0000
Alt. SKU: CT-VWD.12
Special Price
£46.37
£38.64
Regular Price
£71.34
Why Choose the CT-VWD.12 [1SVR500130R0000]
The CT-VWD.12 is a single-function electronic time relay from the CT-D timer range. It provides an impulse-ON (interval) function with 7 time ranges from 0.05 s to 100 h. This time relay operates with a rated control supply voltage of 24 - 48 V DC / 24 - 240 V AC and has a 1 c/o (SPDT) output rated at 250 V / 6 A.
Technical Specification
- Function: Impulse ON (interval) timer relay.
- Time Range: 0.05 seconds to 100 hours.
- Supply Voltage: 24–48 V DC / 24–240 V AC.
- Output Contact: 1 C/O (SPDT), rated 250 V / 6 A.
- Insulation Voltage: 300 V between input and output circuits.
- Impulse Withstand Voltage: 4 kV on input circuit.
- Degree of Protection: Housing IP50, Terminals IP20.
- Terminal Type and Capacity: Screw terminals for flexible (0.5–2.5 mm²) and rigid (0.5–4 mm²) conductors.
- Tightening Torque: 0.5–0.8 N·m.
- Mounting: DIN rail TH35-15 or TH35-7.5 compliant with IEC 60715.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the function of the CT-VWD.12 relay?
The CT-VWD.12 is an impulse-ON (interval) timer relay.
What are the time range options for this relay?
The time range for the CT-VWD.12 is from 0.05 seconds to 100 hours.
What supply voltages are compatible with the CT-VWD.12?
This relay operates with a rated control supply voltage of 24–48 V DC or 24–240 V AC.
What is the output contact rating of the CT-VWD.12?
The output contact is 1 c/o (SPDT), rated at 250 V / 6 A.
What type of mounting is required for the CT-VWD.12?
The relay can be mounted on a DIN rail TH35-15 or TH35-7.5 compliant with IEC 60715.
What is the terminal capacity for the CT-VWD.12?
The terminals are screw type, accommodating flexible conductors of 0.5–2.5 mm² and rigid conductors of 0.5–4 mm².
What is the degree of protection for the CT-VWD.12?
The housing has an IP50 rating, while the terminals have an IP20 rating.
| Manufacturer Part Number | 1SVR500130R0000 |
|---|---|
| Timer Type | Impulse On |
| Control Voltage | 24-240VAC or 24-48VDC |
| Time Range | 0.05s-100h |
| Outputs | 1 c/o SPDT output |
| Barcode | 4013614350672 |
| HS Code | 85364900 |
| Country of Manufacture | Bulgaria |
| Alternative Product SKU | CT-VWD.12 |
| Manufacturer | ABB |
