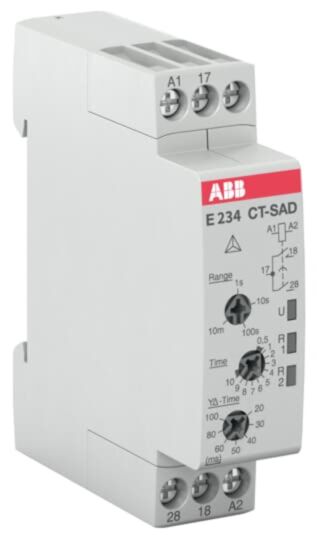

abb ct-sad.22 timer star delta 0.05 s to 10 min 2n/o
MPN: 1SVR500210R0100
Alt. SKU: CT-SAD.22
Special Price
£51.30
£42.75
Regular Price
£78.92
Why Choose the CT-SAD.22 [1SVR500210R0100]
The CT-SAD.22 is a single-function electronic time relay from the CT-D timer range. It provides a star-delta function with 4 time ranges from 0.05 s to 10 min. and a transition time adjustable from 20 ms to 50 ms. This time relay operates with a rated control supply voltage of 24 - 48 V DC / 24 - 240 V AC and has a 2 n/o output with contacts rated at 250 V / 5 A.
Technical Specification
- Function: Star-Delta electronic time relay with 4 time ranges from 0.05 s to 10 min and adjustable transition time 20 ms to 50 ms.
- Control Supply Voltage: 24 - 48 V DC / 24 - 240 V AC.
- Contact Configuration: 2 normally open (N/O) contacts rated at 250 V / 5 A.
- Insulation and Impulse Voltage: Rated insulation voltage 300 V; rated impulse withstand voltage 4 kV.
- Degree of Protection: Housing IP50, Terminals IP20.
- Terminal Type and Cable Size: Screw terminals; flexible wire 0.5 - 2.5 mm², rigid wire 0.5 - 4 mm².
- Tightening Torque: 0.5 - 0.8 N·m.
- Mounting: DIN rail TH35-15 and TH35-7.5 compliant with IEC 60715.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the function of the CT-SAD.22 relay?
The CT-SAD.22 is a star-delta electronic time relay designed for motor control applications.
What are the time range settings available for this relay?
The relay offers four time ranges from 0.05 seconds to 10 minutes.
What is the adjustable transition time for the CT-SAD.22?
The transition time can be adjusted from 20 ms to 50 ms.
What is the rated control supply voltage for this relay?
The relay operates with a control supply voltage of 24 - 48 V DC or 24 - 240 V AC.
What is the contact configuration and rating for the outputs?
The relay has 2 normally open (N/O) contacts rated at 250 V and 5 A.
What is the mounting compatibility for the CT-SAD.22?
This relay is compatible with DIN rail TH35-15 and TH35-7.5, in accordance with IEC 60715.
What are the cable size requirements for the terminals?
The screw terminals accept flexible wire sizes from 0.5 to 2.5 mm² and rigid wire sizes from 0.5 to 4 mm².
| Manufacturer Part Number | 1SVR500210R0100 |
|---|---|
| Timer Type | Star delta |
| Control Voltage | 24-240VAC or 24-48VDC |
| Time Range | 0.05s-10min |
| Number of Poles | 2NO |
| Barcode | 4016779657716 |
| Country of Manufacture | Bulgaria |
| Alternative Product SKU | CT-SAD.22 |
| Manufacturer | ABB |
| Product Lead Time | Please contact us for a delivery time |
