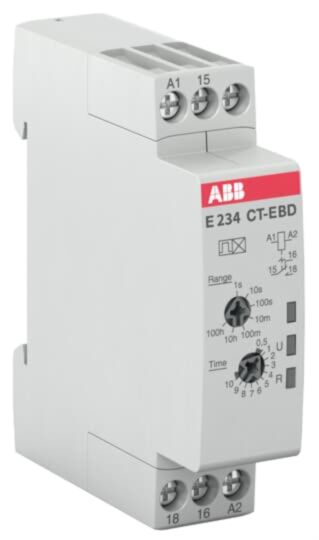

abb ct-ebd.12 timer flasher start on 0.05 s ... 100 h 1c/o
MPN: 1SVR500150R0000
Alt. SKU: CT-EBD.12
Special Price
£46.37
£38.64
Regular Price
£71.34
Why Choose the CT-EBD.12 [1SVR500150R0000]
The CT-EBD.12 is a single-function electronic time relay from the CT-D timer range. It provides a flasher (recycling equal times) function with 7 time ranges from 0.05 s to 100 h. This time relay operates with a rated control supply voltage of 24 - 48 V DC / 24 - 240 V AC and has a 1 c/o (SPDT) output rated at 250 V / 6 A.
Technical Specification
- Function: Flasher (recycling equal times) starting with ON.
- Time Range: 0.05 seconds to 100 hours.
- Control Supply Voltage: 24 - 48 V DC / 24 - 240 V AC.
- Output Contact: 1 changeover (SPDT), rated 250 V / 6 A.
- Rated Impulse Withstand Voltage: 4 kV for input circuit.
- Rated Insulation Voltage: 300 V (input/output circuit).
- Degree of Protection: Housing IP50, terminals IP20.
- Terminal Type and Size: Screw terminals for flexible 0.5 - 2.5 mm², rigid 0.5 - 4 mm² conductors.
- Mounting: On TH35 DIN rail (35 x 7.5 mm or 35 x 15 mm) per IEC 60715.
- Tightening Torque: 0.5 - 0.8 N·m.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the function of the CT-EBD.12 relay?
The CT-EBD.12 is a single-function electronic time relay that provides a flasher function with recycling equal times.
What are the time ranges available for the CT-EBD.12?
The time ranges for the CT-EBD.12 are from 0.05 seconds to 100 hours.
What is the control supply voltage for the CT-EBD.12?
The control supply voltage is 24 - 48 V DC or 24 - 240 V AC.
What is the output rating of the CT-EBD.12?
The output contact is a 1 changeover (SPDT) rated at 250 V / 6 A.
How is the CT-EBD.12 mounted?
The CT-EBD.12 is mounted on a TH35 DIN rail (35 x 7.5 mm or 35 x 15 mm) per IEC 60715.
What is the tightening torque for the terminals of the CT-EBD.12?
The tightening torque for the terminals is between 0.5 - 0.8 N·m.
What is the degree of protection for the CT-EBD.12?
The housing has an IP50 rating, while the terminals have an IP20 rating.
| Manufacturer Part Number | 1SVR500150R0000 |
|---|---|
| Timer Type | Flasher start On |
| Control Voltage | 24-240VAC or 24-48VDC |
| Time Range | 0.05s-100h |
| Outputs | 1 c/o SPDT output |
| Barcode | 4013614350689 |
| HS Code | 85364900 |
| Country of Manufacture | Bulgaria |
| Alternative Product SKU | CT-EBD.12 |
| Manufacturer | ABB |
