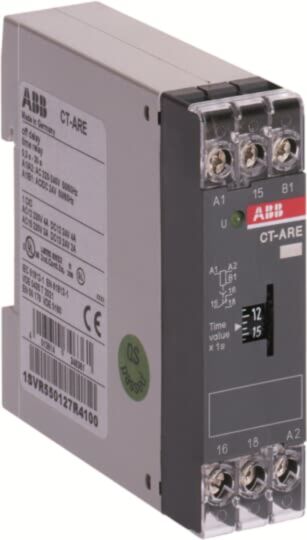

abb ct-are timer true off delay 0.1-10s 1c/o
MPN: 1SVR550120R1100
Why Choose the CT-ARE [1SVR550120R1100]
The CT-ARE is a single-function electronic time relay from the CT-E timer range. It provides an OFF-delay (true delay on break) function without auxiliary voltage and with a time range from 0.1 s to 10 s. This time relay operates with a rated control supply voltage of 110 - 130 V AC and has a 1 c/o (SPDT) output rated at 250 V / 4 A.
Technical Specification
- Function: True OFF-delay time relay (0.1 to 10 seconds).
- Control Supply Voltage: 110 - 130 V AC.
- Output Contact: 1 C/O (SPDT), rated 250 V / 4 A.
- Rated Operational Current: AC-12: 4 A (230 V), AC-15: 3 A (230 V), DC-12: 4 A (24 V), DC-13: 2 A (24 V).
- Terminal Type: Screw terminals.
- Mounting: DIN rail TH35-15 / TH35-7.5 (IEC 60715).
- Standards Compliance: IEC/EN 61812-1, UL 508, CAN/CSA C22.2 No.14.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the function of the CT-ARE relay?
The CT-ARE is a true OFF-delay time relay providing a delay on break function.
What is the time range for the CT-ARE relay?
The time range for the CT-ARE relay is from 0.1 seconds to 10 seconds.
What is the rated control supply voltage for the CT-ARE?
The rated control supply voltage is 110 - 130 V AC.
What type of output does the CT-ARE relay have?
The CT-ARE has a 1 c/o (SPDT) output rated at 250 V / 4 A.
What are the mounting options for the CT-ARE relay?
The CT-ARE can be mounted on DIN rail TH35-15 or TH35-7.5 (IEC 60715).
What are the terminal types for the CT-ARE relay?
The CT-ARE relay features screw terminals for connections.
What standards does the CT-ARE comply with?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 1SVR550120R1100 |
|---|---|
| Timer Type | OFF-delay |
| Control Voltage | 110-130VAC |
| Time Range | 0.1-10s |
| Outputs | 1 c/o SPDT output |
| Barcode | 4013614346330 |
| Manufacturer | ABB |
