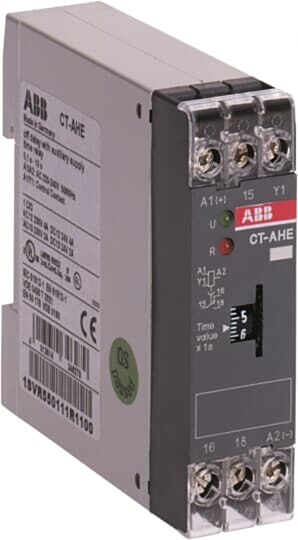

abb ct-ahe timer off delay 0.1-10s 1c/o
MPN: 1SVR550110R1100
Why Choose the CT-AHE [1SVR550110R1100]
The CT-AHE is a single-function electronic time relay from the CT-E timer range. It provides an OFF-delay (delay on break) function with a time ranges from 0.1 s to 10 s. This time relay operates with a rated control supply voltage of 110 - 130 V AC and has a 1 c/o (SPDT) output rated at 250 V / 4 A. A control input works with voltage-related (non-floating) triggering.
Technical Specification
- Function: OFF-delay (delay on break) timer relay.
- Time Range: 0.1 to 10 seconds.
- Control Supply Voltage: 110 to 130 V AC.
- Contact Configuration: 1 C/O (SPDT) output.
- Rated Operational Current: 4 A at 230 V AC (AC-12), 3 A at 230 V AC (AC-15).
- Rated Operational Current DC: 4 A at 24 V DC (DC-12), 2 A at 24 V DC (DC-13).
- Terminal Type: Screw terminals.
- Mounting: DIN rail TH35-15 and TH35-7.5 (IEC 60715).
- Standards: CAN/CSA C22.2 No.14, IEC/EN 61812-1, UL 508.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the function of the CT-AHE relay?
The CT-AHE is an OFF-delay (delay on break) timer relay.
What is the time range for the CT-AHE relay?
The time range is from 0.1 seconds to 10 seconds.
What is the rated control supply voltage for the CT-AHE?
The rated control supply voltage is 110 to 130 V AC.
What type of output does the CT-AHE relay have?
The relay has a 1 c/o (SPDT) output rated at 250 V / 4 A.
What are the mounting options for the CT-AHE?
The CT-AHE can be mounted on DIN rail TH35-15 and TH35-7.5 (IEC 60715).
What is the terminal type for the CT-AHE relay?
The relay features screw terminals.
What standards does the CT-AHE comply with?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 1SVR550110R1100 |
|---|---|
| Timer Type | OFF-delay |
| Control Voltage | 110-130VAC |
| Time Range | 0.1-10s |
| Outputs | 1 c/o SPDT output |
| Barcode | 4013614346248 |
| Manufacturer | ABB |
