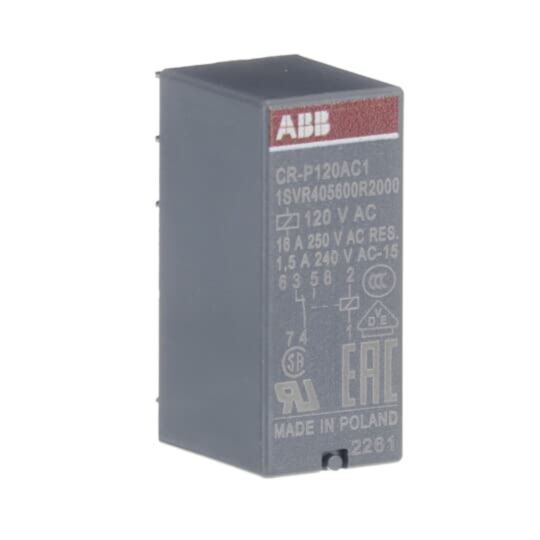

ABB CR-P120AC1 Pack of 10 Pluggable Interface Relays
MPN: 1SVR405600R2000
Alt. SKU: CR-P120AC1
Special Price
£42.43
£35.36
Regular Price
£65.28
Why Choose the CR-P120AC1 [1SVR405600R2000]
The CR-P120AC1 pluggable interface relay is suitable for direct mounting on a printed circuit board or use in conjunction with ABB's sockets. This relay operates with a 120 V AC rated control supply voltage and has a 1 c/o (SPDT) output with contacts rated at 250 V / 16 A, enabling the possibility of switching multiple circuits with a single input signal. Coupled with a socket, the compact size of this relay offers possibilities to save space within a control panel. Furthermore, with an IP degree of 67, this relay offers complete protection against ingress of dust and airborne particles & protection against water and liquids, up to and including immersion in up to one meter of water. Standard sockets, logical sockets, pluggable function modules, holder and marker are available as accessories.
Technical Specification
- Function: Pluggable PCB interface relay with 1 c/o (SPDT) contact.
- Rated Control Supply Voltage: 120 V AC.
- Contact Rating: 250 V / 16 A.
- Rated Operational Voltage: 400 V AC.
- Rated Operational Current: AC-12: 16 A (230 V), AC-15: 3 A (120 V) / 1.5 A (230 V), DC-12: 16 A (24 V), DC-13: 2.5 A (24 V) / 0.1 A (250 V).
- Terminal Type: Soldering pins.
- Rated Insulation Voltage: 400 V.
- Degree of Protection: IP67, dust tight and protected against immersion up to 1 metre.
- Standards: IEC/EN 61810-1; UL/CSA rated B300, V-0 flammability.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated control supply voltage for the CR-P120AC1 relay?
The rated control supply voltage for the CR-P120AC1 relay is 120 V AC.
What is the contact rating of the relay?
The contact rating of the relay is 250 V / 16 A.
Can the CR-P120AC1 relay be mounted directly on a PCB?
Yes, the CR-P120AC1 relay is suitable for direct mounting on a printed circuit board.
What is the degree of protection for this relay?
The relay has an IP67 rating, providing complete protection against dust and immersion in water up to one metre.
What type of terminals does the CR-P120AC1 relay use?
The relay uses soldering pins as its terminal type.
What accessories are available for the CR-P120AC1 relay?
Standard sockets, logical sockets, pluggable function modules, holders, and markers are available as accessories.
What standards does the CR-P120AC1 relay conform to?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 1SVR405600R2000 |
|---|---|
| Manufacturer | ABB |
| Packed Quantity | 10 |
| Amperage | 16A |
| Number of Poles | 1 Pole |
| Product Lead Time | Please contact us for a delivery time |
| Barcode | 4013614498152 |
| Alternative Product SKU | CR-P120AC1 |
| Coil Voltage | 120VAC |
