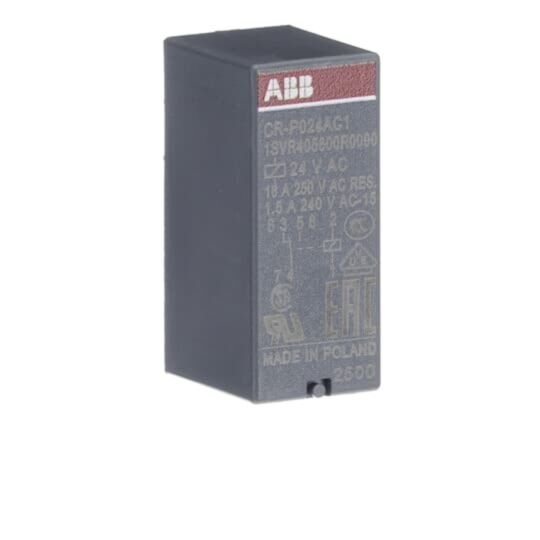

ABB CR-P024AC1 Pluggable Relay 1C/O 24VAC
MPN: 1SVR405600R0000
Alt. SKU: CR-P024AC1
Special Price
£3.41
£2.84
Regular Price
£5.24
Why Choose the CR-P024AC1 [1SVR405600R0000]
The CR-P024AC1 pluggable interface relay is suitable for direct mounting on a printed circuit board or use in conjunction with ABB's sockets. This relay operates with a 024 V AC rated control supply voltage and has a 1 c/o (SPDT) output with contacts rated at 250 V / 16 A, enabling the possibility of switching multiple circuits with a single input signal. Coupled with a socket, the compact size of this relay offers possibilities to save space within a control panel. Furthermore, with an IP degree of 67, this relay offers complete protection against ingress of dust and airborne particles & protection against water and liquids, up to and including immersion in up to one meter of water. Standard sockets, logical sockets, pluggable function modules, holder and marker are available as accessories.
Technical Specification
- Function: Pluggable PCB interface relay with 1 C/O (SPDT) contact.
- Rated Control Supply Voltage: 24 V AC.
- Contact Rating: 250 V, 16 A for switching multiple circuits.
- Rated Operational Voltage: 400 V AC.
- Insulation Voltage: 400 V.
- Degree of Protection: IP67 – dust tight and protected against immersion in water up to 1 metre.
- Terminal Type: Soldering pins.
- Mounting: Direct PCB mount or with ABB sockets for space-saving panel design.
- Standards Compliance: IEC/EN 61810-1, UL/CSA rated to 300 V AC, flammability UL94 V-0.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the rated control supply voltage for the CR-P024AC1 relay?
The rated control supply voltage for the CR-P024AC1 relay is 24 V AC.
What is the contact rating of the relay?
The contact rating is 250 V and 16 A, suitable for switching multiple circuits.
How is the CR-P024AC1 relay mounted?
The relay can be directly mounted on a printed circuit board or used with ABB sockets for a space-saving design.
What is the degree of protection for this relay?
The relay has an IP67 rating, providing complete protection against dust and immersion in water up to 1 metre.
What accessories are available for the CR-P024AC1 relay?
Standard sockets, logical sockets, pluggable function modules, holders, and markers are available as accessories.
What standards does the CR-P024AC1 relay comply with?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 1SVR405600R0000 |
|---|---|
| Manufacturer | ABB |
| Packed Quantity | 1 |
| HS Code | 85364900 |
| Amperage | 16A |
| Number of Poles | 1 Pole |
| Barcode | 4013614498138 |
| Country of Manufacture | Poland |
| Alternative Product SKU | CR-P024AC1 |
