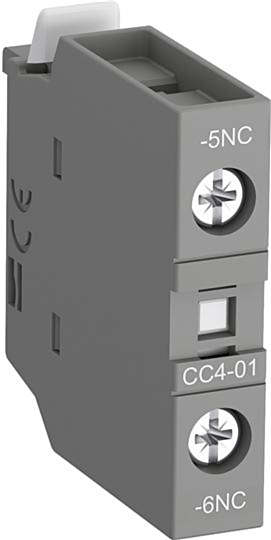

ABB cc4-01 front mounted aux contact block with nc leading contact and no lagging contact
MPN: 1SBN010111R1001
Alt. SKU: CC4-01
Special Price
£15.16
£12.63
Regular Price
£23.32
Why Choose the CC4-01 [1SBN010111R1001]
The CC4-01 is a 1-pole auxiliary contact block designed for front mounting, featuring screw terminals for secure wiring connections. It is compatible with AF(C)09(Z)(B) through AF(C)96 contactors, as well as NF(C)(Z)(B) contactor relays. This model includes one normally closed (N.C.) lagging contact, suitable for standard industrial applications requiring reliable auxiliary switching.
Technical Specification
- Function: 1-pole auxiliary contact block with one normally closed (N.C.) lagging contact.
- Rated Operational Voltage: Up to 690 V (IEC/EN), 600 V (UL/CSA).
- Rated Operational Current AC-15: 2 A at 500-690 V, up to 6 A at 24-127 V.
- Rated Operational Current DC-13: Up to 6 A / 144 W at 24 V, decreasing with higher voltages.
- Rated Insulation Voltage: 690 V (IEC 60947-5-1), 600 V (UL/CSA).
- Impulse Withstand Voltage: 6 kV.
- Degree of Protection: IP20 at auxiliary terminals.
- Terminal Type and Size: Screw terminals; 0.75 to 2.5 mm² flexible and rigid wires, including ferrules.
- Mechanical Durability: Maximum mechanical switching frequency of 3600 cycles per hour.
- Compatibility: Fits AF(C)09(Z)(B)...96 contactors and NF(C)(Z)(B) contactor relays.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the function of the CC4-01 auxiliary contact block?
The CC4-01 is a 1-pole auxiliary contact block with one normally closed (N.C.) lagging contact, designed for use in industrial environments.
Which contactors and relays is the CC4-01 compatible with?
The CC4-01 can be fitted on AF(C)09(Z)(B)...96 contactors and NF(C)(Z)(B) contactor relays.
What is the rated operational voltage for the CC4-01?
The rated operational voltage is up to 690 V (IEC/EN) and 600 V (UL/CSA).
What is the cable capacity for the terminals of the CC4-01?
The CC4-01 has screw terminals that accommodate 0.75 to 2.5 mm² flexible and rigid wires, including ferrules.
What is the degree of protection for the CC4-01?
The degree of protection at the auxiliary terminals is IP20.
What is the mechanical durability of the CC4-01?
The CC4-01 has a maximum mechanical switching frequency of 3600 cycles per hour.
What standards and approvals does the CC4-01 conform to?
See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 1SBN010111R1001 |
|---|---|
| HS Code | 85369010 |
| Manufacturer | ABB |
| Country of Manufacture | Czechia |
| Alternative Product SKU | CC4-01 |
| Inbuilt Aux | 1 N/C |
| Barcode | 3471523130432 |
