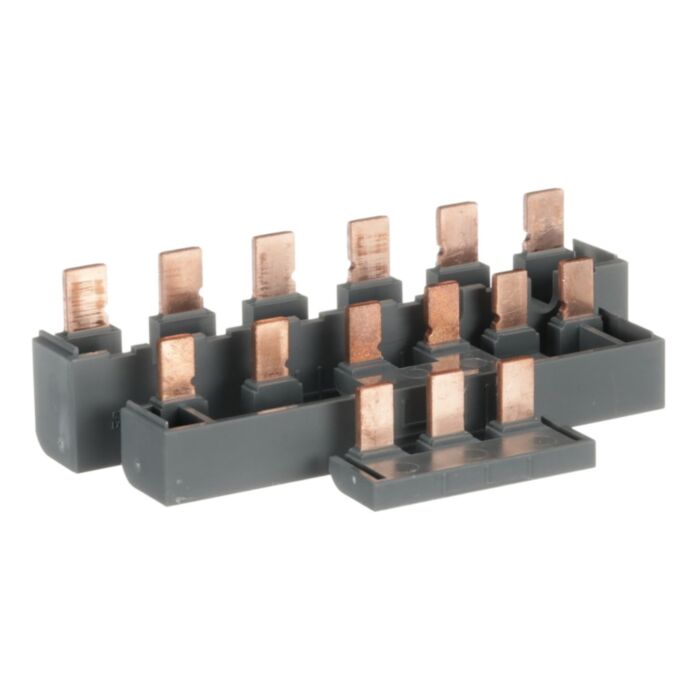

ABB bey96-4 connection sets for star-delta starting
MPN: 1SBN083913R2000
Alt. SKU: BEY96-4
Special Price
£42.74
£35.62
Regular Price
£65.76
Why Choose the BEY96-4 [1SBN083913R2000]
The BEY96-4 connection set is designed for efficient and reliable linking of the main poles in Line, Delta, and Star contactors within star-delta starters, compatible with AF80 to AF96, AFC80 to AFC96, and AFS80 to AFS96 contactor series. This set comprises insulated, solid copper bars configured to provide an upstream phase-to-phase connection between the Line and Delta contactors, a parallel downstream connection between the Delta and Star contactors, and an upstream connection at the star point on the Star contactor. Its robust construction ensures secure electrical continuity and durability in industrial motor control applications.
Technical Specification
- Function: Connection set for main poles of Line, Delta, and Star contactors in star-delta starters.
- Compatible Contactor Ranges: AF80...AF96, AFC80...AFC96, AFS80...AFS96, including AF80B and AF96B variants.
- Rated Operational Voltage: 1000 V AC (Main Circuit).
- Rated Frequency: 50 / 60 Hz (Main Circuit).
- Contact Configuration: Phase-to-phase upstream, parallel downstream connections and star point upstream.
- Material and Insulation: Insulated solid copper bar for reliable conductivity and safety.
- Terminal Type: Screw terminals for secure and easy wiring.
- Weight: 0.25 kg.
- Standards Compliance: EN 60947-1, EN 60947-4-1, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60947-1, CSA C22.2 No. 60947-4-1.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the function of the BEY96-4 connection set?
The BEY96-4 is used to connect the main poles of Line, Delta, and Star contactors in star-delta starters.
Which contactor ranges are compatible with the BEY96-4?
The BEY96-4 is compatible with AF80...AF96, AFC80...AFC96, and AFS80...AFS96 contactor ranges, including AF80B and AF96B variants.
What is the rated operational voltage for the BEY96-4?
The rated operational voltage is 1000 V AC for the main circuit.
What type of terminals does the BEY96-4 connection set use?
The BEY96-4 features screw terminals for secure and easy wiring.
What materials are used in the BEY96-4 connection set?
The connection set is made of insulated solid copper bar for reliable conductivity and safety.
What are the weight and dimensions of the BEY96-4?
The weight of the BEY96-4 is 0.25 kg. See the manufacturer's documentation for detailed dimensions.
What standards does the BEY96-4 comply with?
The BEY96-4 complies with EN 60947-1, EN 60947-4-1, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60947-1, and CSA C22.2 No. 60947-4-1.
| Manufacturer Part Number | 1SBN083913R2000 |
|---|---|
| HS Code | 85369010 |
| Manufacturer | ABB |
| Country of Manufacture | China |
| Alternative Product SKU | BEY96-4 |
| Barcode | 3471523130975 |
