ABB bey65-4 connection sets for star-delta starting
MPN: 1SBN083413R2000
Alt. SKU: BEY65-4
Special Price
£33.82
£28.18
Regular Price
£52.02
Why Choose the BEY65-4 [1SBN083413R2000]

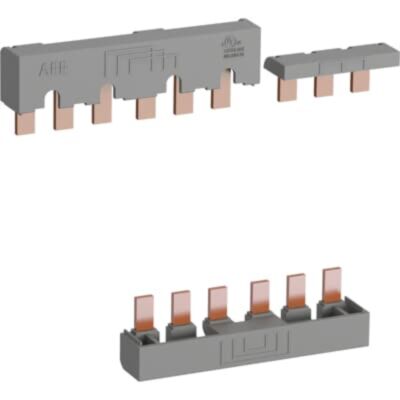

The BEY65-4 connection set is designed for efficient and reliable linking of the main poles in Line, Delta, and Star contactors within star-delta starter configurations. It is compatible with AF40 to AF65, AFC40 to AFC65, and AFS40 to AFS65 contactor series. The set comprises insulated solid copper bars configured for upstream phase-to-phase connection between the Line and Delta contactors, a parallel downstream connection between the Delta and Star contactors, and an upstream star point connection on the Star contactor. This ensures secure electrical continuity and simplifies installation in motor control applications.
Technical Specification
- Function: Connection set for star-delta starters, linking main poles of Line, Delta, and Star contactors.
- Suitable For: AF40...AF65, AFC40...AFC65, AFS40...AFS65 contactor ranges and variants AF40B, AF52B, AF65B.
- Rated Operational Voltage: 690 V AC.
- Rated Frequency: 50 / 60 Hz.
- Contact Configuration: Phase-to-phase and parallel connections with star point upstream.
- Insulation: Insulated, solid copper bars for durability and safety.
- Terminal Type: Screw terminals for secure electrical connections.
- Standards Compliance: EN 60947-1, EN 60947-4-1, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60947-1, CSA C22.2 No. 60947-4-1.
- Weight: 0.2 kg.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the function of the BEY65-4 connection set?
The BEY65-4 connection set is designed to connect the main poles of Line, Delta, and Star contactors in a star-delta starter configuration.
Which contactor ranges are compatible with the BEY65-4?
The BEY65-4 is suitable for AF40...AF65, AFC40...AFC65, and AFS40...AFS65 contactor ranges, including variants AF40B, AF52B, and AF65B.
What is the rated operational voltage of the BEY65-4?
The rated operational voltage is 690 V AC.
What type of insulation does the BEY65-4 connection set use?
The connection set features insulated, solid copper bars for enhanced durability and safety.
What type of terminals does the BEY65-4 have?
The BEY65-4 is equipped with screw terminals for secure electrical connections.
What standards does the BEY65-4 comply with?
The BEY65-4 complies with EN 60947-1, EN 60947-4-1, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60947-1, and CSA C22.2 No. 60947-4-1.
What is the weight of the BEY65-4 connection set?
The weight of the BEY65-4 connection set is 0.2 kg.
| Manufacturer Part Number | 1SBN083413R2000 |
|---|---|
| HS Code | 85369010 |
| Manufacturer | ABB |
| Country of Manufacture | China |
| Alternative Product SKU | BEY65-4 |
| Barcode | 3471523130968 |
