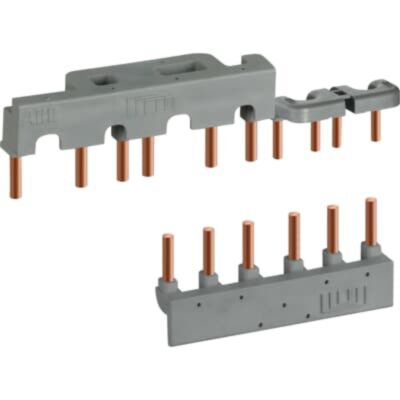

ABB bey38-4 connection sets for star-delta starting
MPN: 1SBN082713R2000
Alt. SKU: BEY38-4
Special Price
£27.16
£22.63
Regular Price
£41.78
Why Choose the BEY38-4 [1SBN082713R2000]
The BEY38-4 connection set is designed to facilitate reliable and efficient linking of the main poles for Line, Delta, and Star contactors within star-delta starter configurations. It is compatible with AF26 to AF38, AFC26 to AFC38, and AFS26 to AFS38 contactor series. The set comprises insulated, solid copper bars configured for phase-to-phase connections between the Line and Delta contactors, parallel downstream connections between the Delta and Star contactors, and an upstream connection at the Star contactor’s star point. This ensures secure electrical continuity and simplifies installation in motor control applications.
Technical Specification
- Function: Connection set for star-delta starters connecting main poles of Line, Delta, and Star contactors.
- Compatible Contactors: AF26 ... AF38, AFC26 ... AFC38, AFS26 ... AFS38 ranges.
- Rated Operational Voltage: 690 V AC.
- Rated Frequency: 50 / 60 Hz.
- Construction: Insulated, solid copper bar.
- Terminal Type: Screw terminals.
- Standards Compliance: EN 60947-1, EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 60947-4-1.
- Weight: 0.11 kg.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What is the function of the BEY38-4 connection set?
The BEY38-4 connection set is used to connect the main poles of Line, Delta, and Star contactors in a star-delta starter configuration.
Which contactor ranges are compatible with the BEY38-4?
The BEY38-4 is compatible with AF26 ... AF38, AFC26 ... AFC38, and AFS26 ... AFS38 contactor ranges.
What is the rated operational voltage of the BEY38-4?
The rated operational voltage is 690 V AC.
What type of terminals does the BEY38-4 connection set use?
The BEY38-4 features screw terminals for secure connections.
What materials is the BEY38-4 connection set made from?
The connection set is constructed from insulated, solid copper bar.
What are the weight specifications for the BEY38-4?
The weight of the BEY38-4 connection set is 0.11 kg.
What standards does the BEY38-4 comply with?
It complies with EN 60947-1, EN 60947-4-1, UL 60947-4-1, and CSA C22.2 No. 60947-4-1. See the manufacturer's data sheet for standards and approvals.
| Manufacturer Part Number | 1SBN082713R2000 |
|---|---|
| Manufacturer | ABB |
| Country of Manufacture | China |
| Alternative Product SKU | BEY38-4 |
| Barcode | 3471523130814 |
| Product Lead Time | Contact us for a delivery time before you order |
