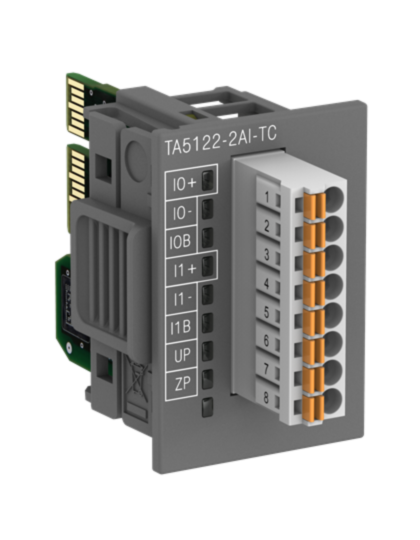

ABB Analog input option board. 2 AI: Thermocouple B, E, J, K, N, R, S, T. 16 Bit. Spring terminals included (TA5123-2AI-RTD)
MPN: 1SAP187100R0004
Alt. SKU: TA5122-2AI-TC
Why Choose the Distributed Automation PLCs [1SAP187100R0004]
The TA5122-2AI-TC is an AC500-eCo analog input option board featuring two high-resolution 16-bit inputs designed for thermocouples types B, E, J, K, N, R, S, and T. It includes spring terminal connectors for secure and reliable wiring. This module is ideal for precise temperature measurement applications within automation systems, ensuring compatibility and straightforward integration with the AC500-eCo range.
Technical Specification
- Function: 2 analog inputs for thermocouples (types B, E, J, K, N, R, S, T).
- Resolution: 16-bit analog input.
- Input Signal: Thermocouple (TC).
- Terminal Type: Spring terminals included.
- Degree of Protection: IP20 housing.
- Weight: 0.015 kg.
- Category: Programmable Logic Controller (PLC) analog input option board.
Trusted By Customers Worldwide
"Specified by UK panel builders for dependable control." Controls Engineer, UK
Frequently Asked Questions
What types of thermocouples are compatible with the TA5122-2AI-TC?
The TA5122-2AI-TC is compatible with thermocouple types B, E, J, K, N, R, S, and T.
What is the resolution of the analog inputs on this board?
The analog inputs have a resolution of 16 bits.
What type of terminals does the TA5122-2AI-TC use?
The board includes spring terminals for connections.
What is the degree of protection for the TA5122-2AI-TC?
The housing has an IP20 degree of protection.
What is the weight of the TA5122-2AI-TC?
The weight of the board is 0.015 kg.
What category does the TA5122-2AI-TC belong to?
The TA5122-2AI-TC is a Programmable Logic Controller (PLC) analog input option board.
What standards and approvals does the TA5122-2AI-TC conform to?
See the manufacturer's data sheet for standards and approvals.
| PLC Range | AC500 |
|---|---|
| Barcode | 4013614561450 |
| Manufacturer | ABB |
| Manufacturer Part Number | 1SAP187100R0004 |
| Module type | ANALOG INPUT MODULE |
| Alternative Product SKU | TA5122-2AI-TC |
Write Your Own Review
AC500 PLC range
The AC500 PLC range provides a powerful and platform enabling you to create and design cost-effective, scalable, and highly flexible automation solutions with a range of benefits. This includes scalability achieved through a wide range of devices for the implementation and design of control task configurations and complex automation solutions. Additional benefits are action flexibility in a single integrated piece of software, and cost-effectiveness through a variety of I/O modules, CPUs, communication interface modules, communication modules, and accessories.
You can expect high-performance and memory capacities in networking capabilities provided advanced visualization, increased functionality, improved operating comfort, and highly individual client solutions. The AC500-eCo comes with the additional advantages of enhanced scalability, exceptional ease of handling, and increased flexibility through its approval for client use by globally accredited certification organizations. The result is a reliable and safe range that can be deployed on a global scale.
| The AC500 offers effective scalability through a wide variety of devices for the design and implementation of configurations suitable for controlling simple tasks and complex automation solutions. It provides flexibility in a single piece of integrated software that's cost-effective, with various I/O modules, CPUs, communication interface modules, communication modules, and accessories. ABB’s lifecycle policy and “all modules used on any CPUs concept” allows swift reactions, flexibility, and economical solutions, with the required reliability, security and ease needed to expand the automation system and meet new challenges. High levels of memory, performance, and networking capabilities allow for superior individual customer solutions. |
