9006.R/5 Cembre EWO IP66 Black Rectangular Flat Seals
MPN: 9006.R/5
Alt. SKU: 3201418
Special Price
£1.85
£1.54
Regular Price
£2.46
9006.R/5 Cembre EWO IP66 Black Rectangular Flat Seals is available to buy in increments of 10
Why Choose the Cembre EWO 9006.R/5 IP66 Black Rectangular Flat Seals

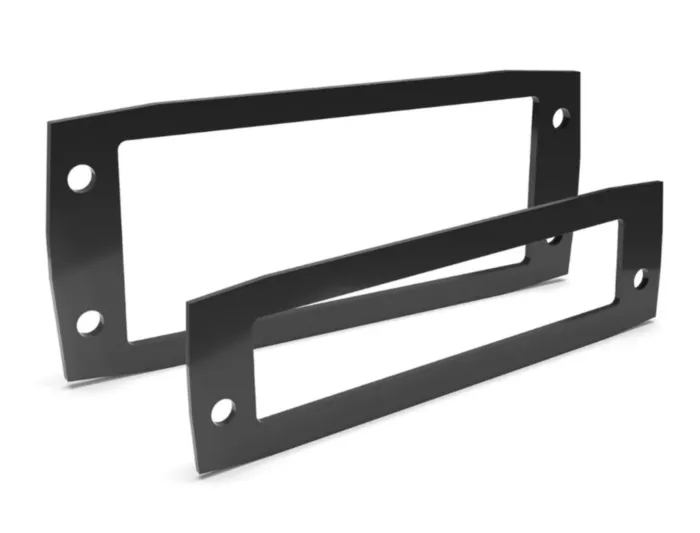

The Cembre 9006.R/5 flat seal is a dedicated sealing accessory for the EWO split cable entry system. Designed for the R/5 rectangular frame layout, it provides a robust flat gasket to ensure an IP66-rated seal between the frame and the panel cut-out. It is ideal for compact or modular enclosures used in machinery, automation panels, and industrial control cabinets where dependable ingress protection is essential.
Manufactured from durable thermoplastic elastomer in black (RAL 9005), the 9006.R/5 achieves uniform compression across the frame perimeter. Suitable for new builds and retrofits, it supports long-term sealing performance in demanding environments.
Key Features
- Flat elastomer gasket tailored for the EWO R/5 rectangular frame layout.
- Maintains IP66 ingress protection when installed with compatible frames and grommets.
- Resistant to oils, chemicals, and industrial contaminants.
- Colour: black (RAL 9005).
- Operating temperature (static): -40 °C to +140 °C.
- Reusable if carefully removed and confirmed undamaged.
Technical Specifications
- Manufacturer: Cembre
- Series: EWO split cable entry system - Flat Seals
- Model: 9006.R/5
- Function: Flat rectangular sealing gasket for R/5 frames
- Material: Thermoplastic elastomer (TPE)
- Colour: Black (RAL 9005)
- Ingress Protection: IP66 with compatible EWO frame
- Operating Temperature (static): -40 °C to +140 °C
- Compatibility: EWO R/5 rectangular frame layout
Certifications
Conforms to EWO system approvals including CE, UKCA, UL (cURus), and RINA when used as part of a compliant assembly. Provides sealing performance up to IP66 when installed correctly. Material meets UL94 V-0 fire classification.
Comparison and Selection Notes
Choose 9006.R/5 for R/5 rectangular frames. For other sizes consider 9006.R/2, 9006.R/3, 9006.R/4, or for larger rectangular layouts 9006.10, 9006.16, 9006.24. For square layouts select 9006.Q. Always match the seal to the frame format to maintain IP performance.
Frequently Asked Questions
- What is the 9006.R/5 used for
- Does it maintain IP66 sealing
- Which frame does it fit
- Can it be reused
Applications
- Sealing EWO R/5 rectangular frames in compact control cabinets and machinery panels.
- Providing reliable IP66 protection in automation and process environments.
- Retrofits and replacements where a smaller rectangular gasket is required.
Trusted By Installers
"Consistent compression and quick fitment make the R/5 seal a safe choice for tight layouts." Control Panel Engineer, UK
The 9006.R/5 is a flat rectangular seal for EWO R/5 frames, maintaining IP66 between the frame and the panel cut-out.
Yes. When installed with the correct R/5 frame and compatible grommets, the 9006.R/5 supports an IP66-rated assembly.
It is designed to fit the EWO R/5 rectangular frame layout.
Yes, if removed carefully and free from damage. For critical sealing applications, replacement is recommended.
| Manufacturer Part Number | 9006.R/5 |
|---|---|
| Alternative Product SKU | 3201418 |
| Manufacturer | Cembre |
| Degree of protection (IP) | IP66 |
| Colour | Black |
| Material | NBR |
| Packed Quantity | 10 |
| Depth | 2.5mm |
