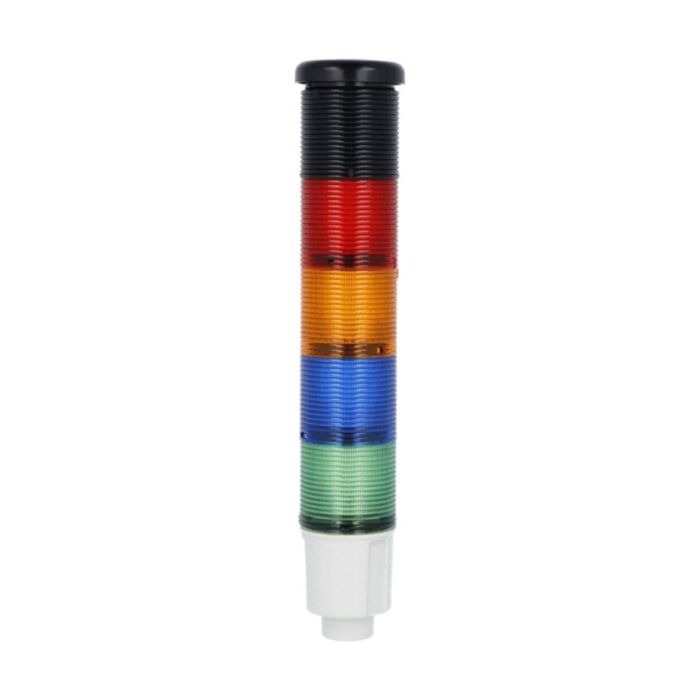

8LT4K07BG - ILLUMIN/SOUND 3 COL TOWER 45MM GRN-BLU-ORG-RED 24VDC
MPN: 8LT4K07BG
Special Price
£242.93
£202.44
Regular Price
£404.87
Why Choose the 8LT4K07BG?
SKU 8LT4K07BG is a Lovato 8LT4 pre-assembled signal tower for clear status indication in compact Ø45mm applications. It features built-in LED steady-light modules in green, blue, orange and red, plus an 80 dB sounder supporting continuous or pulsed operation, all powered at 24VDC. Durable polycarbonate housing supports reliable, low-maintenance visual and audible alerts.
Designed to conform with IEC/EN 60947-5-1 and 60947-1, and certified to UL508 and CSA C22.2 No. 14, this 400 g device operates from -20 to +50 °C. The pre-assembled build with four colour layers and included sound module simplifies installation and standardisation on 24VDC systems. Part of the Lovato 8LT4 range with polycarbonate housing and sustainability certification.
Key Benefits
- Ø45mm compact profile for space-constrained panels and machines.
- Pre-assembled stack reduces installation time and wiring errors.
- Four steady-light colours for clear, multi-status indication.
- Built-in LED circuit for bright, low-maintenance signalling.
- 80 dB sounder with continuous or pulsed tone option.
- Robust polycarbonate housing for industrial environments.
- Operates from -20 to +50 °C for dependable performance.
Technical Specification
- Product type designation: 8TL4
- Weight: 400 g
- Operating temperature: -20 to +50 °C
What’s Included
- Pre-assembled Ø45mm signal tower with four LED light modules
- Integrated 80 dB sound module (continuous/pulsed)
- Mounting and wiring instructions
- Manufacturer datasheet (PDF)
Applications
- Machine status indication on production lines
- Control panels requiring multi-stage visual and audible alerts
- Conveyors, packaging and material handling equipment
- Workstations and assembly cells for process signalling
- General industrial automation signalling at 24VDC
Frequently Asked Questions
What supply voltage does the 8LT4K07BG require?
It operates on 24VDC.
How many indication colours are provided?
Four colours: green, blue, orange and red.
Does this unit include an audible alarm?
Yes, it includes an 80 dB sound module with continuous or pulsed modes.
What is the diameter of this signal tower?
It has a Ø45mm diameter.
Which standards does it conform to?
IEC/EN 60947-5-1, IEC/EN 60947-1, UL508 and CSA C22.2 n° 14.
Safety note: Ensure installation and wiring to 24VDC are performed by qualified personnel, observe applicable standards, and operate within the -20 to +50 °C range. Disconnect power before servicing.
| Manufacturer Part Number | 8LT4K07BG |
|---|---|
| Manufacturer | Lovato |
| HS Code | 85365080 |
| Barcode | 8013975234723 |
| Coil Voltage | 24VDC |
