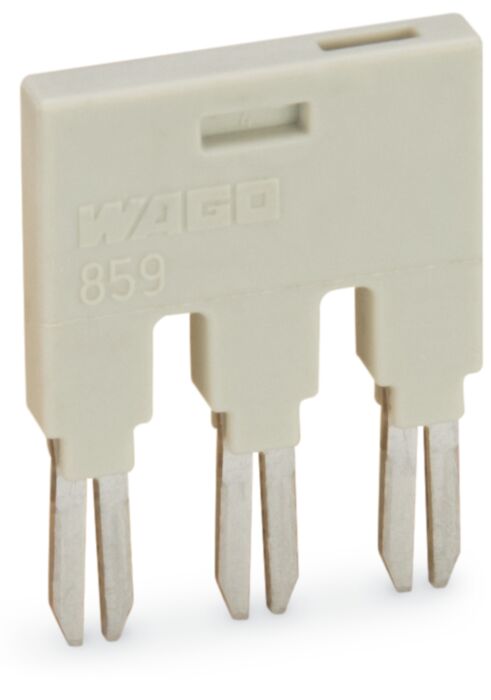

859-409 Wago Jumper;for jumper slot;9-way;light gray
MPN: 859-409
Alt. SKU: 859409
Special Price
£1.13
£0.9435
Regular Price
£1.33
859-409 Wago Jumper;for jumper slot;9-way;light gray is available to buy in increments of 25
Why Choose the WAGO 859-409 Cross-Connection Jumper?
The WAGO 859-409 is a 9-way insulated cross-connection jumper designed for use with WAGO interface modules. It allows multiple modules to be electrically bridged via the integrated jumper slot, enabling fast and reliable distribution of common signals or power across adjacent devices in control cabinets.
Part of the WAGO interface electronics system, the jumper simplifies wiring by eliminating the need for separate conductors between modules. Its plug-in design allows installers to connect up to nine modules quickly while maintaining safe electrical isolation. :contentReference
The compact insulated construction ensures reliable performance in industrial environments, helping panel builders reduce installation time while maintaining neat and organised control cabinet layouts.
Key Advantages
- 9-way cross-connection jumper for bridging multiple modules.
- Reduces wiring complexity in control cabinets.
- Simple plug-in installation via module jumper slots.
- Insulated design for safe electrical operation.
- Improves wiring organisation and panel assembly efficiency.
- Compatible with WAGO interface electronics modules.
Key Features
- 9-pole jumper bar.
- Designed for use with WAGO interface module jumper slots.
- Insulated light grey housing.
- Plug-in installation without additional wiring.
- Compact accessory for industrial control panels.
- Suitable for common supply or signal distribution.
Technical Specifications
- Manufacturer: WAGO
- Model: 859-409
- Product type: Cross-connection jumper
- Series: WAGO 859 interface module accessories
- Number of poles: 9
- Rated current: approx. 18 A
- Colour: Light grey
- Installation: Plug-in jumper slot
- Application: Bridging adjacent relay or interface modules
Efficient Bridging for Interface Modules
Industrial control panels often require common supply connections or signal distribution across several relay or interface modules. Cross-connection jumpers such as the WAGO 859-409 provide a quick and organised way to link these modules without additional wiring.
By allowing several modules to share a common connection through a single accessory, installers can reduce wiring time, improve cabinet layout and minimise potential wiring errors during panel assembly.
Typical Applications
- Relay and interface module assemblies.
- Industrial control panels and automation systems.
- Signal distribution across multiple modules.
- Machine control cabinets.
- Electrical panel installations.
Frequently Asked Questions
What is the WAGO 859-409 used for?
The jumper is used to electrically bridge multiple WAGO interface modules, allowing common signals or power to be distributed across adjacent devices.
How many modules can be connected?
The 859-409 is a 9-way jumper, enabling connections across up to nine modules.
Is the jumper insulated?
Yes. The device features an insulated design to ensure safe electrical bridging inside control cabinets.
How is the jumper installed?
The jumper simply plugs into the dedicated jumper slot on compatible WAGO interface modules.
Why are cross-connection jumpers used?
They reduce wiring effort by allowing multiple modules to share common power or signals through a single plug-in accessory.
Trusted by Panel Builders
WAGO interface module accessories are widely used by control panel builders and automation engineers to simplify wiring and ensure reliable connections in industrial systems.
| Manufacturer Part Number | 859-409 |
|---|---|
| Height | 104mm |
| Width | 20mm |
| Depth | 74mm |
| Manufacturer | Wago |
| Packed Quantity | 25 |
| HS Code | 85366990 |
| Barcode | 4066966274028 |
| Colour | Light Grey |
| Country of Manufacture | Germany |
| Alternative Product SKU | 859409 |
