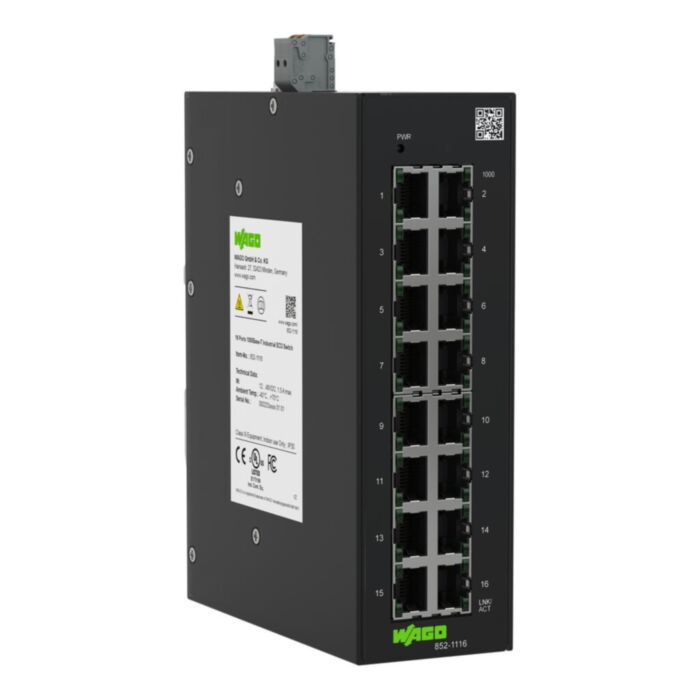

852-1116 Wago Industrial-ECO-Switch;16 Ports 1000Base-T;black

Why Choose the WAGO 852-1116 Industrial ECO Switch?

The WAGO 852-1116 is a rugged and reliable Industrial ECO Ethernet Switch designed for high-performance networking in industrial automation, manufacturing and infrastructure applications. Featuring 16 Gigabit Ethernet ports, this unmanaged switch provides a simple and cost-effective solution for building secure and efficient industrial communication networks.

As part of WAGO's trusted industrial networking portfolio, the 852-1116 combines plug-and-play operation with industrial-grade reliability. Its non-blocking store-and-forward switching architecture ensures consistent data transmission, while automatic speed detection and Auto-MDI/MDIX functionality simplify installation and commissioning.

With support for 10/100/1000Base-T Ethernet, a wide 12 to 48 V DC power supply range and an extended operating temperature range of -40°C to +70°C, the WAGO 852-1116 is ideally suited for demanding industrial environments where network uptime and reliability are essential.

Key Advantages

• Industrial-grade 16-port Gigabit Ethernet switch.
• Unmanaged design enables simple plug-and-play installation.
• 16 × 1000Base-T RJ45 ports for high-speed networking.
• Wide 12 to 48 V DC operating voltage range.
• Extended temperature range for harsh environments.
• Integrated overvoltage and reverse-polarity protection.
• Compact DIN rail mounting design for control cabinets.
• Supports Ethernet packet prioritisation according to IEEE 802.1p.

Key Features

• WAGO Industrial ECO Switch.
• Product code 852-1116.
• 16 × Gigabit Ethernet RJ45 ports.
• Store-and-forward non-blocking switching.
• Auto-negotiation on all Ethernet ports.
• Auto-MDI/MDIX crossover detection.
• 8,000 MAC address table capacity.
• 10,000-byte jumbo frame support.
• Integrated alarm contact and redundant power capability.
• DIN rail mounting.
• Industrial aluminium housing.

Technical Specifications

• Manufacturer: WAGO
• Series: Industrial ECO Switch
• Model: 852-1116
• Product type: Unmanaged Industrial Ethernet Switch
• Number of ports: 16
• Port type: 16 × RJ45 Gigabit Ethernet
• Ethernet standards: IEEE 802.3i, 802.3u, 802.3ab
• Switching mode: Store-and-forward, non-blocking
• MAC address table: 8,000 entries
• Jumbo frame size: 10,000 bytes
• Supply voltage: 12 to 48 V DC
• Maximum power consumption: 14 W
• Protection rating: IP30
• Operating temperature: -40°C to +70°C
• Mounting type: DIN rail
• Housing material: Aluminium
• Dimensions (H × W × D): 160 × 50 × 120 mm
• Weight: Approx. 934 g

Reliable Networking for Industrial Automation

The WAGO 852-1116 is designed for industrial networks where reliability, simplicity and performance are critical. Its unmanaged architecture allows rapid deployment without complex configuration, making it ideal for machine automation, production facilities and infrastructure projects.

Advanced features including automatic speed negotiation, Auto-MDI/MDIX detection, Ethernet packet prioritisation and industrial-grade environmental protection help ensure dependable network operation in challenging industrial conditions.

Typical Applications

• Industrial Ethernet networks.
• Manufacturing automation systems.
• Machine building and OEM equipment.
• Process automation plants.
• Water and wastewater treatment facilities.
• Building automation systems.
• Energy and utility infrastructure.
• Control cabinet networking.

Trusted by Industrial Automation Professionals

WAGO Industrial ECO switches are widely used throughout manufacturing, infrastructure and process industries where dependable Gigabit Ethernet communication and long-term reliability are essential.
